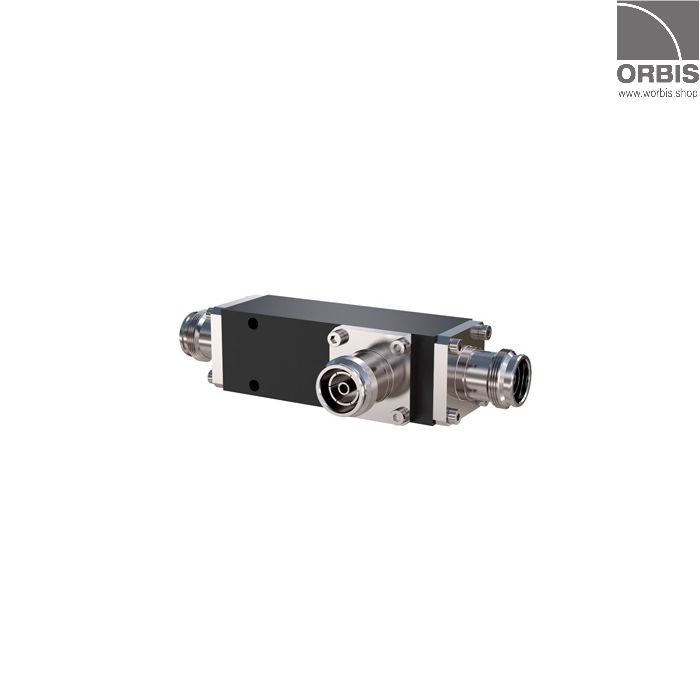

Tapper 30:1/15 dB 300W 350-2700 MHz 4.3-10F H+S

Unequal Power Divider (tapper) 30:1, connector 4.3-10(female), frequency range 350-2700 MHz, (no coupling from 960 to 1710 MHz), PIM-value -161 dBc @ 2 x 43 dBm

Band 1:

Frequency, Ghz: 0.35-0.96
Return Loss, dB: 20.8
Tapp Loss, dB: 15
Insertion Loss, dB: 0.1
Max. Composite Power, W: 300
Peak Envelope Power, W: 2000
Intermodulation distortion, dBc: -161@ 2 x 43 Carrier Power (dBm)

Band 2:

Frequency, Ghz: 1.71-2.7
Return Loss, dB: 20.8
Tapp Loss, dB: 15
Insertion Loss, dB: 0.1
Max. Composite Power, W: 300
Peak Envelope Power, W: 2000
Intermodulation distortion, dBc: -161@ 2 x 43 Carrier Power (dBm)

Mechanical and Environmental Data:

Char. impendance: 50 Om
Dimensions: 32 x 89 x 32 mm (Heigth x Width x Length
Weight: 0.42 kg
Environmental conditions: indoor / outdoor
Temperature: -40 ... +75C
Housing material: Aluminium
Surface treatment: Black paint
