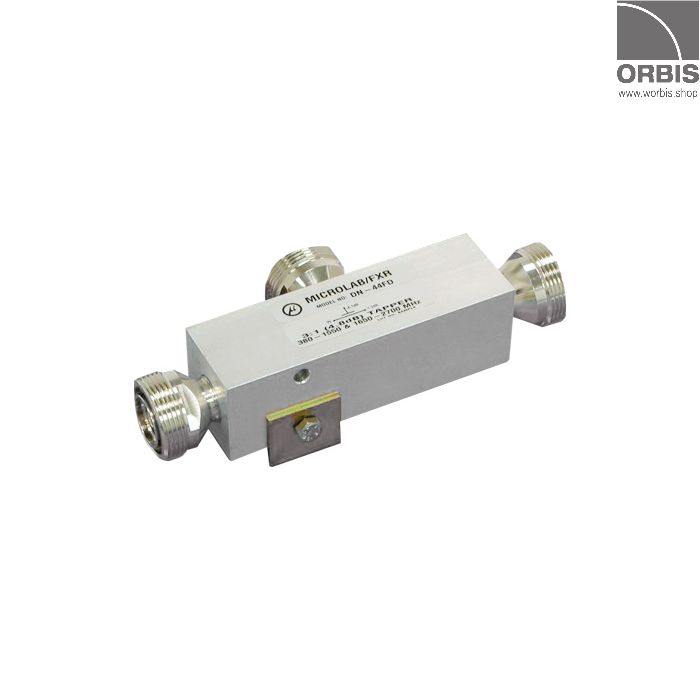

Tapper 3:1/4,8 dB 500W 350-5850 MHz 7/16F

Asymmetric power splitter (tapper) 3:1 4.8dB, connector 7/16(female), 500W, frequency range 350-5850 MHz , (there is no coupling 1550 to 1650 MHz). PIM-value -161 dBc @ 2 x 43 dBm

Frequency: 350 - 5,850 MHz
Ratio: 3:1/4.8dB
Main/Branch Split: -1.3/-6.1
Power: 500W avg., 3 kW peak
VSWR: 1.2:1 for 700-2500 MHz, 1.4:1 for 350-5850 MHz
PIM: -161 dBc (2 tones at +43dBm)
Connectors: 7-16(f) trimetal
Ingress Protection: IP64
Weight: 280g

This product is compatible with 3500 MHz frequency, which is used in the 5G mobile network technology. View also our other 5G compatible components for indoor mobile coverage applications>>
