Pre-assembled panel SC UPC DPX

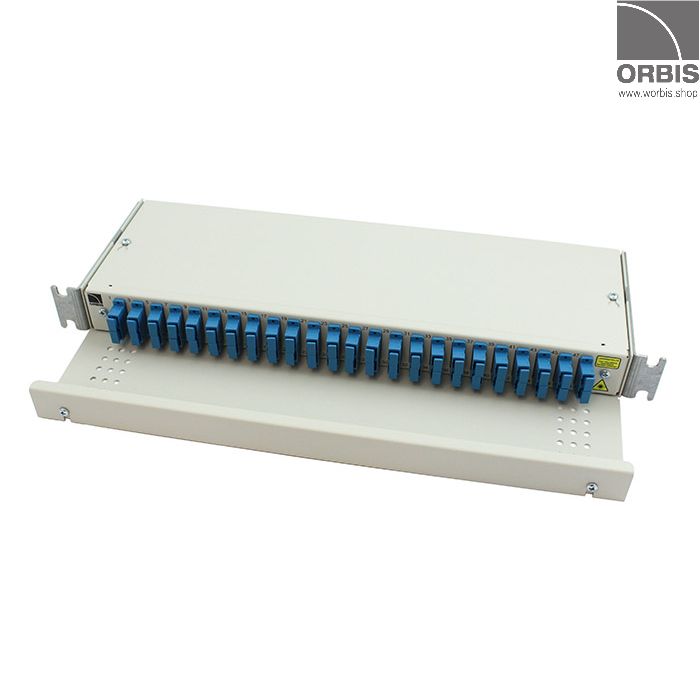

The fiber optic panel manufactured in Orbis' own production includes pre-installed adapters and pigtails. The front panel has numbering 1-48. The empty ports of the 24-fiber panel are covered with blanking plugs. The panel has a screw-mounted sliding cover and at the back of the panel are large bendable cable entries. The depth of the panel is 140 mm and height 1U. Can also be mounted on the wall. Material: powder coated metal, gray RAL 7035.

Product includes

• Pre-installed adapters OS2 SC UPC DPX (12 or 24 depending on the model)
• Pre-installed OS2 pigtails, according to the FIN2012 color order (24 or 48 depending on the model)
• Splice protection sleeve 45mm (according to the number of fibers)
• Bottom plate (collision protection)
• Grounding screw
• Splice holder (according to the number of fibers)
• Mounting nuts/screws
