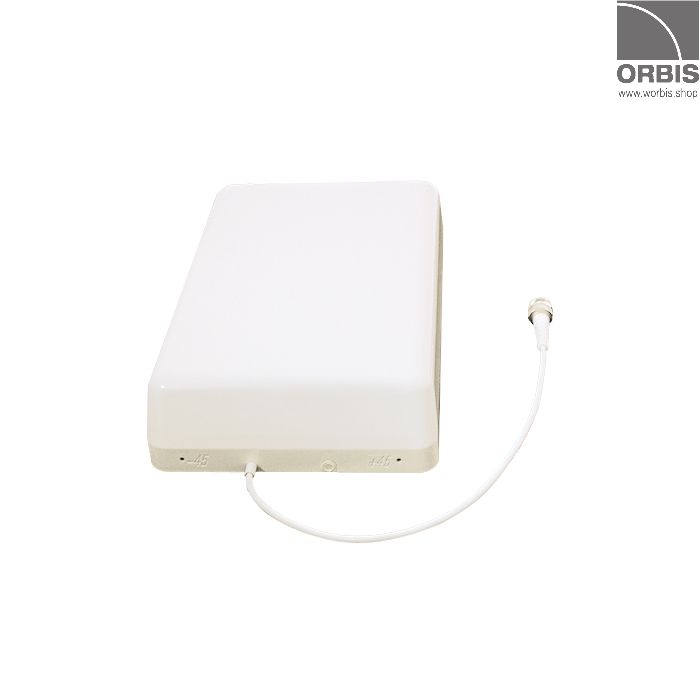

Panel antenna 50W 380-4000 MHz 4.3-10F

Direct. panel antenna, 380-4000MHz, impedanssi 50 ohm, impedance 50 ohm, gain 2-6,5 dBi, VSWR 2,0, power 50W, PIM -150dBc @ 2x43dBm, pigtail length 300mm, 4.3-10 female connector, color white

Product code

3008501

€87.96

Stock in Finland: 39

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Technical details

Technical details
Manufacturer's product name	AI380-4000V08i70A
Application	Indoor Mobile Coverage
RF connector 1	4.3-10 female
Frequency range (MHz)	380-4000
Power (W)	50
PIM (@2x43 dBm)	-150
VSWR	2
Pigtail length (mm)	300
Antenna size (WxHxD, mm)	308 x 190 x 65
Weight (kg)	0,6
Environment	Indoor
Structure of antennas	SiSo
Direction	Panel
Gain (dBi)	2-6,5
Material/Design	ABS
5G Compatible	Yes

Product attachments

All prices VAT 0%.
