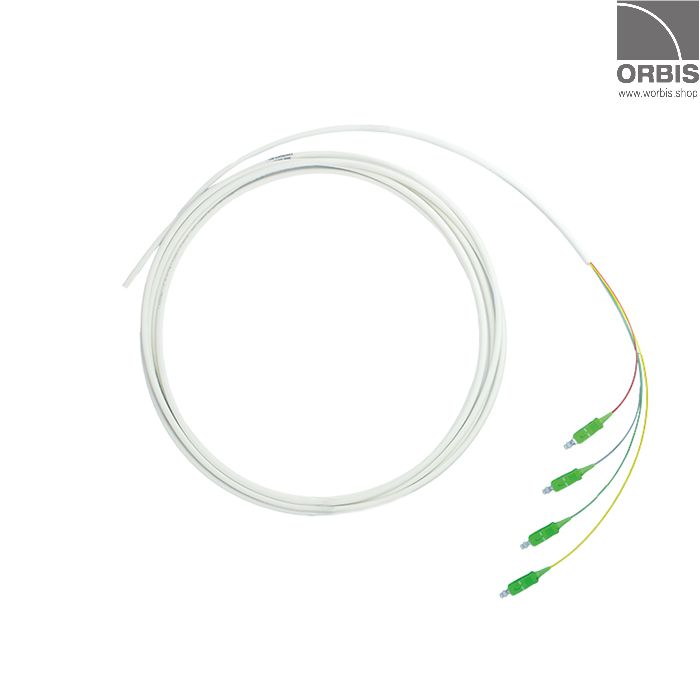

Orbis OptoFiber FTTH 4F SC APC 15-60m

Four-fiber cable assembly for indoor installations manufactured by Orbis Oy. SC APC connectors at one end of the cable, with a pulling protection tube.

The cables are delivered with apartment-specific labels. Send the desired labeling information to our customer service.

Cables are also available in customized lengths, contact our customer service for more information.

Orbis FTTH 4xOS2 LSZH cable technical specifications:

• Fiber type: G.657A
• Cable diameter: 5,5 mm
• Minimum bending radius: 5 x diameter
• Tensile load: 400 N installed/650 N in installation
• Compressive strength: 1000 N/100 mm
• Operating temperature: -10ºC ... +70ºC
• CPR class: Dca, s1, d1, a1
• For indoor use, LSZH - halogen free

Connectors:

• The apartment end of the cable has SC APC connectors. The other end of the cable is cut.
• At the apartment end of the cable, the stripping length from the jacket to the farthest connector is 35 cm.
• The distance between the connectors is 5 cm.

Pulling protection:

• The diameter of the pulling protection tube is 20 mm.
• The length of the pulling protection tube at the apartment end of the cable is 45 cm.
• The tube is secured with two cable ties with a cold shrink underneath to keep the tube in place during installation.
