Orbis OptoFiber FTTH 4F LC APC/LC APC 15-60m

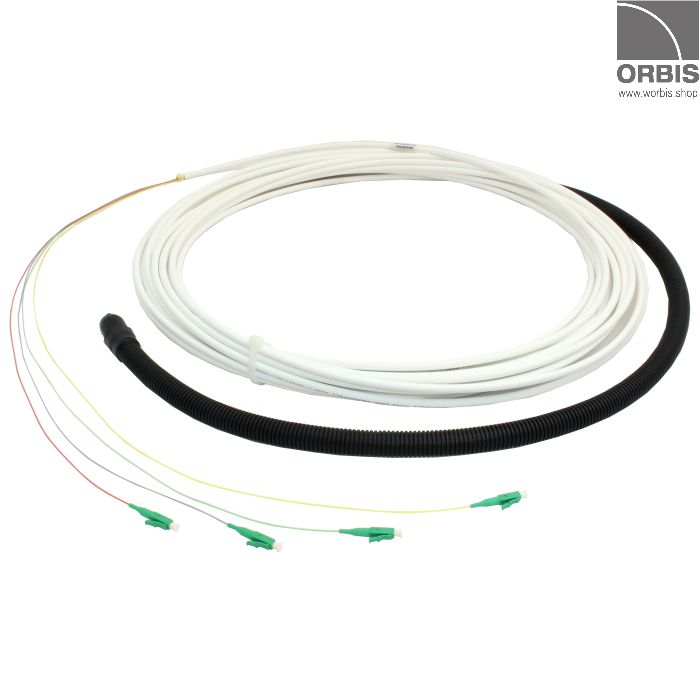

Four-fiber cable assembly for indoor installations manufactured by Orbis Oy. LC APC connectors at both ends of the cable, with pulling protection tubes.

The cables are delivered with apartment-specific labels. Send the desired labeling information to our customer service.

Cables are also available in customized lengths, contact our customer service for more information.

Orbis FTTH 4xOS2 LSZH cable technical specifications:

• Fiber type: G.657A
• Cable diameter: 5,5 mm
• Minimum bending radius: 5 x diameter
• Tensile load: 400 N installed/650 N in installation
• Compressive strength: 1000 N/100 mm
• Operating temperature: -10ºC ... +70ºC
• CPR class: Dca, s1, d1, a1
• For indoor use, LSZH - halogen free

Connectors:

• Both ends of the cable have LC APC connectors.
• At the apartment end, the stripping length from the jacket to the farthest connector is 30 cm.
• At the panel end, the stripping length from the jacket to the farthest connector is 70 cm.
• The distance between the connectors is 5 cm.
• The fibers at both ends of the cable can be identified from each other based on their colors.

Pulling protection:

• The diameter of the pulling protection tube is 20 mm.
• The length of the pulling protection tube at the apartment end of the cable is 45 cm and at the panel end of the cable 80 cm.
• The tube is secured with two cable ties with a cold shrink underneath to keep the tube in place during installation.
