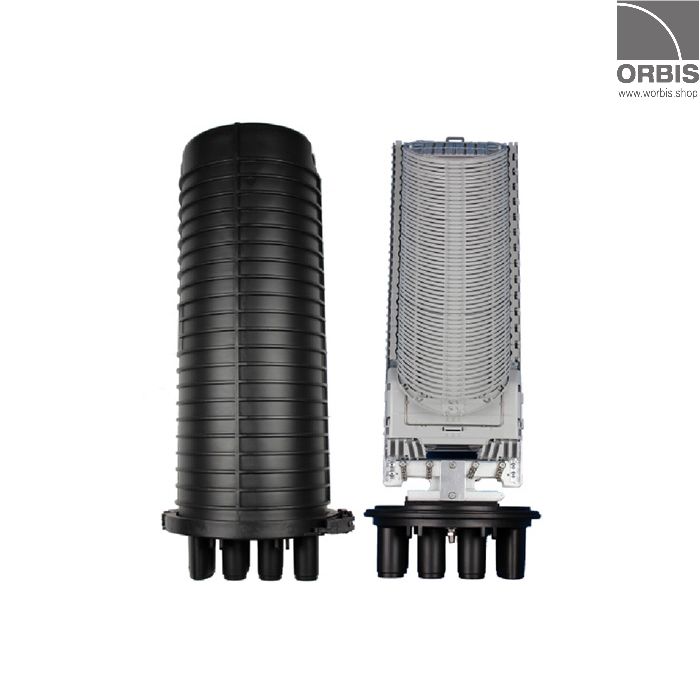

Orbis Fiber Enclosure OMK-03-12F28

For 336 fibers including 28 splice trays, with air valve, wall and pole mounting kits and grounding device.

Product code
3003302
€407.55
Stock in Finland: 53

Orbis Fiber Enclosure is designed for cross-connection and splicing of all kinds of fiber optic cables. It protects fibers in the distribution point of the network.

  • Installation and re-opening with only few tools
  • Can be re-opened and re-used
  • Light and durable structure
  • Resistant to chemicals and UV light
  • Protection class IP68
  • Compatible with all kinds of fiber optical cables
  • Includes mounting kit

Applications

  • Splicing underground
  • Air installations
  • Tunnels and caves
  • Pole or wall mounting

Structure

Cover and bottom (D 247 mm) connected with a locking collar and sealed with a O ring. Enclosure can be locked and includes both grounding and ventilation.

Fiber ports are on the bottom

  • Elliptical port 1 pc A 30 mm x C 82 mm
  • 16 pc round ports



Technical features

Amount of fibers max:

336 fibers

Splicing trays max:

40

Ports on the bottom:

1 + 16 pc

Height:

488 mm

Diameter D with collar:

Ø 247 mm

Ø 285 mm

Weigth:

3,4 kg

Cover:

UV protected

Color:

black

Installation

Installation temperature lowest:

−15 °C

Includes

  • 1 shield for the oval port
  • 16 shields for round ports
  • Ventilation
  • Grounding
  • Mounting kit for a wall or a pole
Datasheet (319.12 kB)
All prices VAT 0%.
