main product photo

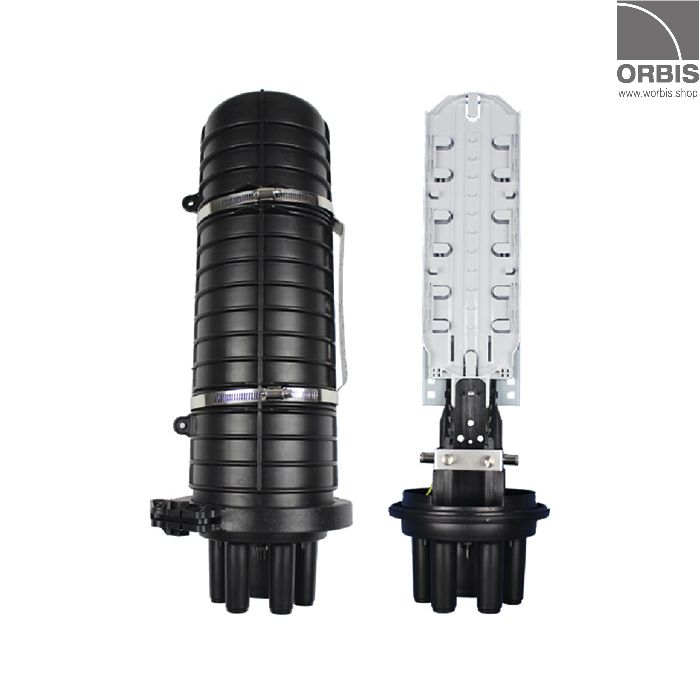

Orbis Fiber Enclosure OMK-02-24F4

For 96 fibers including 4 splice trays, with air valve, wall and pole mounting kits and grounding device.

SKU
3003301
€124.08
In stock 0, Delivery time 70 days from the order if the product is out of stock.

Orbis Fiber Enclosure is designed for cross-connection and splicing of all kinds of fiber optic cables. It protects fibers in the distribution point of the network.

  • Installation and re-opening with only few tools
  • Can be re-opened and re-used
  • Light and durable structure
  • Resistant to chemicals and UV light
  • Protection class IP68
  • Compatible with all kinds of fiber optical cables
  • Includes mounting kit

Applications

  • Splicing underground
  • Air installations
  • Tunnels and caves
  • Pole or wall mounting

 Structure

Cover and bottom (D 247 mm) connected with a locking collar and sealed with a O ring. Enclosure can be locked and includes both grounding and ventilation.

Fiber ports are on the bottom

  • Elliptical port 1 pc, cable diameter max 25mm
  • 16 pc round ports, cable diameter max 20mm



Technical features

Amount of fibers max:

96 fibers

Splicing trays max:

4

Ports on the bottom:

1 + 16 pc

Height:

540 mm

Diameter:

Ø 180 mm

Weight:

4,2 kg

Cover:

UV protected

Color:

black

Installation

Installation temperature lowest:

−15 °C

Includes

  • Splicing trays
  • Hot shrinking tubes
  • Hook for suspension
  • Ventilation
  • Grounding
  • Mounting kit for a wall or a pole
Technical details
Technical details
Weight (kg) 3.420000
Color Musta
Cable included No
IP class IP68
Material Metal and plastic
Operating environment Outdoor use
Liitteet

Datasheet_FI_Orbis_Maajatkoskotelo_OMK-02.pdf

All prices VAT 0%.
