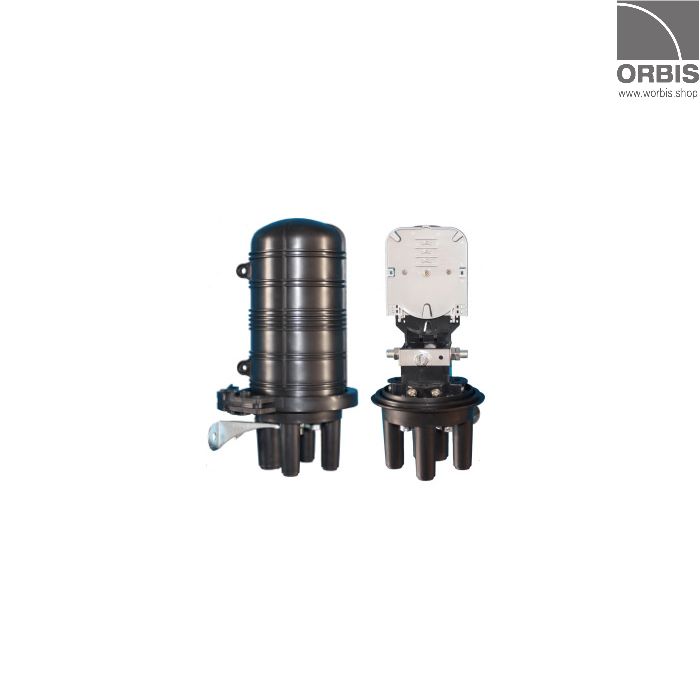

main product photo

Orbis Fiber Enclosure OMK-01-12F4

For 48 fibers including 4 splice trays, with wall and pole mounting kits, grounding device and hanging hook.

SKU
3003300
€63.01
Stock in Finland: 34

Orbis Fiber Enclosure is designed for cross-connection and splicing of all kinds of fiber optic cables. It protects fibers in the distribution point of the network.

  • Installation and re-opening with only few tools
  • Can be re-opened and re-used
  • Light and durable structure
  • Resistant to chemicals and UV light
  • Protection class IP68
  • Compatible with all kinds of fiber optical cables
  • Includes mounting kit

Applications

  • Splicing underground
  • Air installations
  • Tunnels and caves
  • Pole or wall mounting

Structure

Cover and bottom (D 247 mm) connected with a locking collar and sealed with a O ring. Enclosure can be locked and includes both grounding and ventilation.

Fiber ports are on the bottom

  • Elliptical port 1 pc for cable diameter max 18 mm
  • 3 pc round ports for cable diameter max 15 mm



Technical features

Amount of fibers max:

48 fibers

Splicing trays max:

 2

Ports on the bottom:

1 + 3 pc

Height:

300 mm

Diameter:

Ø 178 mm

Weigth:

2 kg

Cover:

UV protected

Color:

black

Installation

Installation temperature lowest:

−15 °C

Includes

  • Hook for suspension
  • Hot shrinking tubes
  • Splicing trays
  • Grounding
  • Mounting kit for a wall or a pole
Technical details
Technical details
Weight (kg) 1.960000
Color Musta
Cable included No
IP class IP68
Material Metal and plastic
Operating environment Outdoor use
Liitteet

Datasheet_FI_Orbis_Maajatkoskotelo_OMK-01.pdf

All prices VAT 0%.
