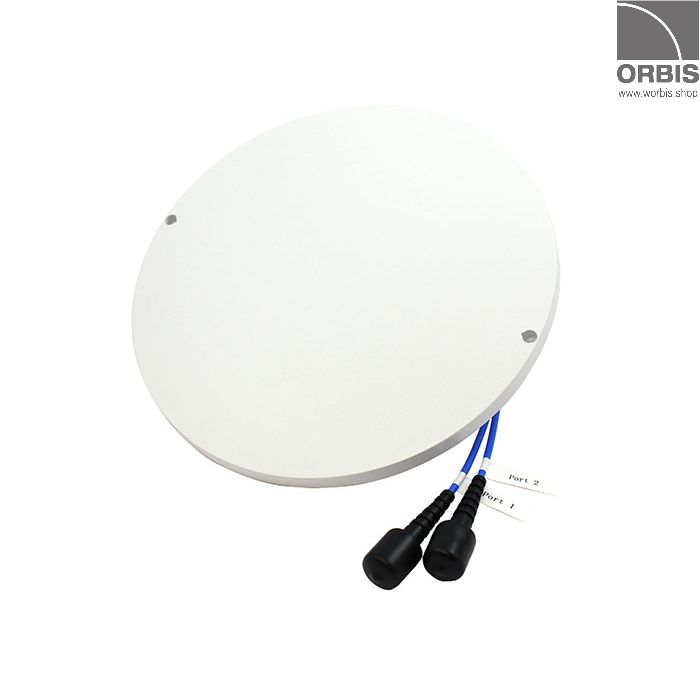

Omni-directional antenna MIMO 50W 698-4000 MHz 4.3-10F

Omni-directional MIMO antenna 698-4000MHz. Impedance 50 ohm, gain 1,5-6,0dBi, VSWR 1,8, power 50W, PIM -153dBc @ 2x43dBm, pigtail length 300mm, connector

SKU

3008499

€66.97

Stock in Finland: 18

Technical details

Technical details
Application	Indoor Mobile Coverage
Weight (kg)	0.500000
Antenna material	ABS
Antenna pigtail cable length (mm)	300
Antenna size (WxHxD, mm)	Ø266 x 18
Direction	Ympärisäteilevä
Frequency (MHz)	698-4000
Gain (dBi)	1,5-6,0
Operating environment	Sisätiloihin
PIM (@2x43 dBm)	-153
Power (W)	50
RF connector 1	4.3-10-naaras
Structure of antennas	MiMo
TETRA	No
5G compatible	Yes

Liitteet

AI698-4000HH06i360B-4310F_Antenna_EN_Orbis_datasheet_3008499.pdf

All prices VAT 0%.
