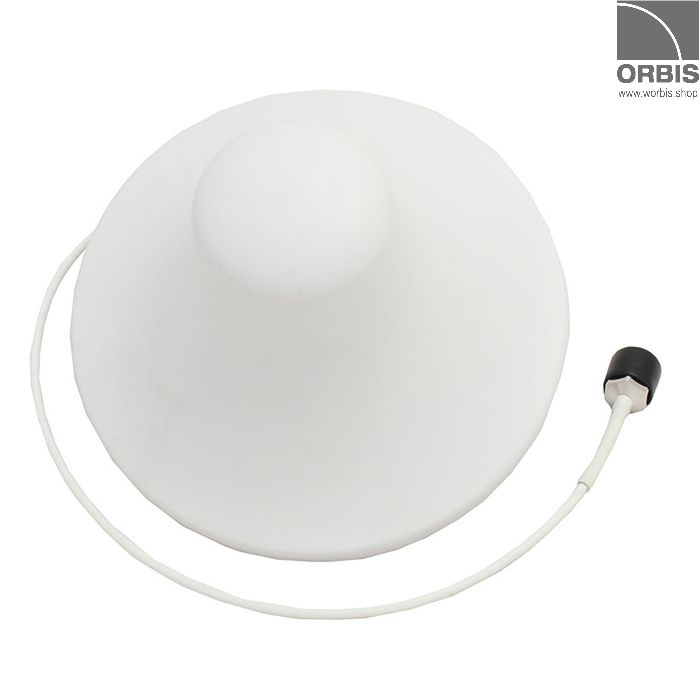

main product photo

Skip to the beginning of the images gallery

Omni-directional antenna 50W 698-2700 MHz 4.3-10F P

Orbis PIM -153dBc

SKU

3005649

€20.50 (€41.64)

Stock in Finland: 1

Product description

Electrical Specifications

Frequency Range（MHz） 698-960 1710-2700
Polarization Vertical
Gain（dBi） 2 5
VSWR ≤1.8 ≤1.5
Horizontal Beamwidth（°） 360
Vertical Beamwidth（°） 60 35
3rd PIM (2×20W carriers)（dBc） ≤-153
Maximum Power Handling（W） 50
Impedance（Ω） 50

Mechanical Specifications

Connector(s) 4.3-10 Female
Length of pigtail (mm) 600
Antenna Dimensions (mm) Φ203×98
Packing Dimensions (mm) 210×210×110
Antenna Weight（kg） 0.4
Packing Weight(kg) 0.45
Radome Material ABS
Mounting Method Ceiling-mount
Operating Temperature Range(°C) -40～55

Technical details

Technical details
Application	Indoor Mobile Coverage, Mobile network
Weight (kg)	0.220000
Color	Valkoinen
Antenna material	ABS
Antenna pigtail cable length (mm)	600
Antenna size (WxHxD, mm)	Ø203 x 150
Direction	Ympärisäteilevä
Frequency (MHz)	698-2700
Gain (dBi)	2,0-5,0
Operating environment	Sisätiloihin
PIM (@2x43 dBm)	-153
Power (W)	50
RF connector 1	4.3-10-naaras
Structure of antennas	SiSo
TETRA	No
5G compatible	No

Datasheet_Orbis_Antenna_indoor_omni_4310F_3005649.pdf

All prices VAT 0%.
