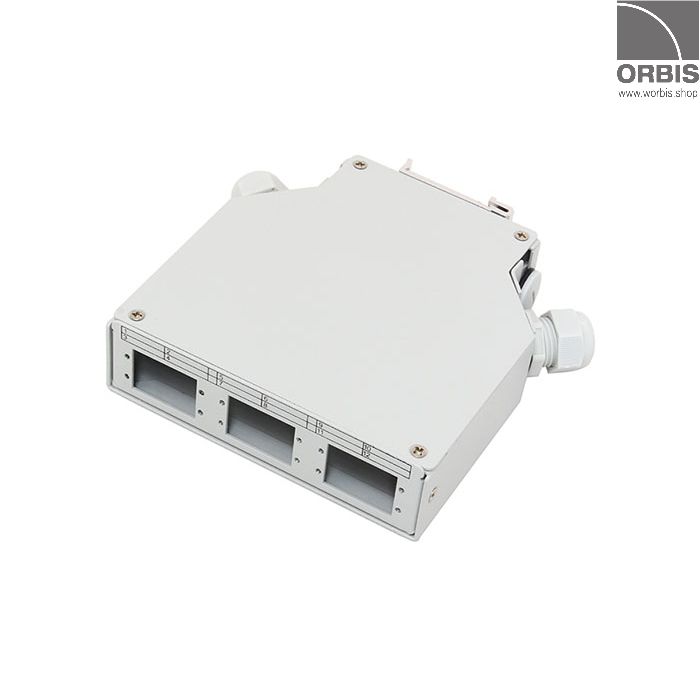

Fiber Optic DIN Rail box 6 SC DPX

Capacity max 12 fibers/port, 4 x IN or 4 x OUT. Grey RAL 7035.

Product code

3007881

€68.12

Stock in Finland: 6

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Product description

Orbis Fiber Optic Din Rail box is developed for demanding fiber optic installations in e.g. industrial environment. The box is small sized and easy to use. It has a robust design, reliable cable entries, cable bending radius protection and integrated fiber optic splice tray. The box can be used in different applications, where space is limited. It can be mounted on a wall or on a Din Rail.

Front panel: 6 x SC Duplex port
Adapter type: SC Duplex or LC Quattro
Applicable connectors: SC, LC, ST, FC
Capacity: max. 12 fibers/port
Ports: 4 x input port or 4 x output port and 12 pigtails/port
Mounting: Din Rail mounting on the wall or on the rack
Material: aluminium-steel
Dimensions: 34,4 x 130 x 125 mm
Attachment of the cover and front panel: with screws
Cable entry: reliable input connector (PG11)
Surface: powder coated
Standard color: Grey RAL 7035

Product attachments

All prices VAT 0%.
