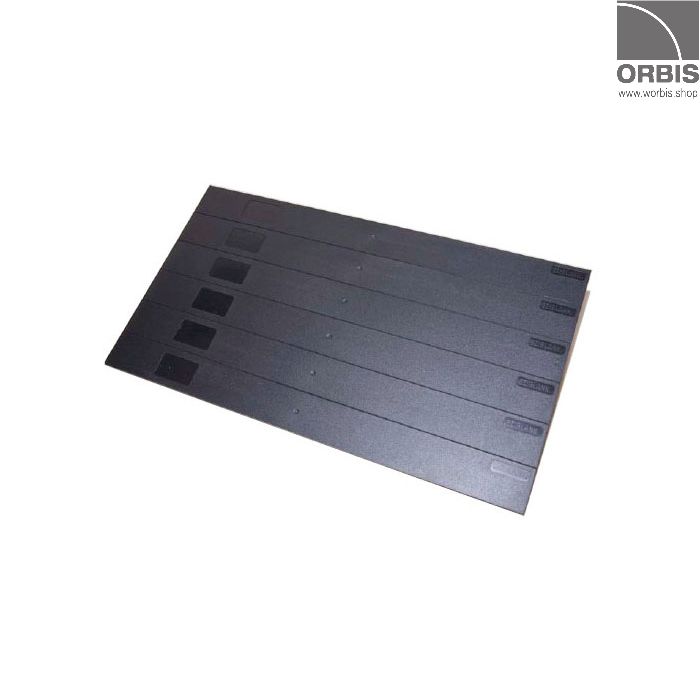

EZIBLANK cover frame 6U 10pcs

Black plastic blanking panel EZIBLANK is installed on front of the 19'' rack. It prevents the airflow between the unused parts of the rack. EZIBLANK consists of 6 1U plates, which can be separated one from each other.

Product code
3004089
€220.08
Stock in Finland: 19

Black plastic blanking panel EZIBLANK is installed on front of the 19'' rack. It prevents the airflow between the unused parts of the rack. EZIBLANK consists of 6 1U plates, which can be separated one from each other.

You do not need any installation tool. Cover frame is 6U high, but individual sheets can be separated and used as a six separate 1U panels. 10pcs/package.

Specification

  • Prevents the hot airflow and improves energy efficiency and the lifetime of the device
  • 6U frame can be devided into six 1U panel sheets
  • The panels are reusable, recyclable and fire-resistant
  • No installation tools needed

Installation instructions

1. Mounting of the 6U frame to the rack.

eziblank1.PNG | 60kb | 237x156

2. Insert the panel into the position in the of the rack. Align the panel's clipses for the rack mounting holes.

eziblank2.PNG | 67kb | 236x155

3. Press on both edges of the panel

eziblank3.PNG | 77kb | 234x166

4. Changing the size of the frame. Bend backwards the needed section from the both edges, then separate one part from nother

eziblank5.PNG | 84kb | 237x157

Technical details
Application Data Center
Datasheet (407.76 kB)
