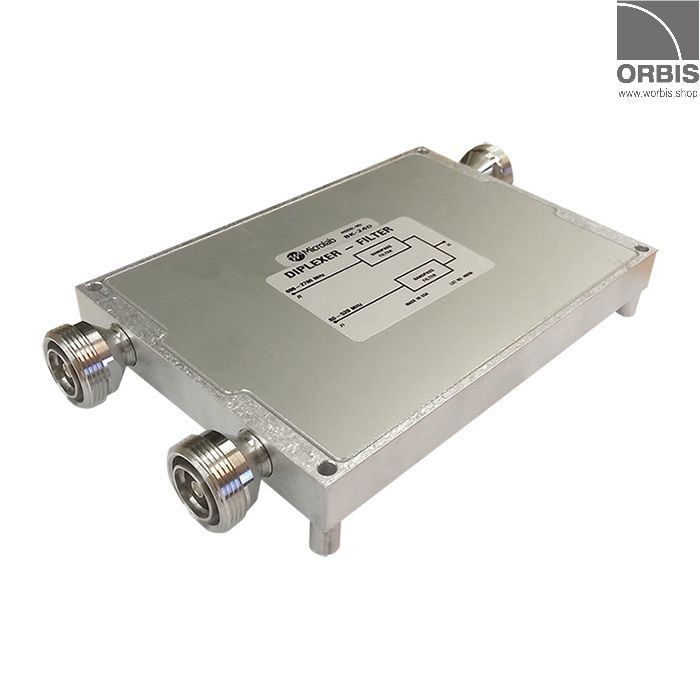

Diplexer 50W 80-520/694-2700 MHz 7/16F

Orbis PIM -150 dBc @ 2x43 dBm, 50W, frequency range 80-520 / 694-2700MHz, connector 7/16F

Product code
3002045
€430.00 (€583.78)
In stock
: 1

Diplexer connector 7/16(female)
PIM-value -161dBc @ 2 x 43 dBm
Environment: -35 to +65°C
Weight: 1kg

Input P1

  • Pass Bands, MHz / Input Isolation: 80-520 / >50 dB
  • Pass Bands, MHz / Input Isolation: 694-800 / >40 dB
  • Pass Band Loss: <0.3 dB
  • Power Rating Avg, peak: 50W., 3 kW

Input P2

  • Pass Bands, MHz / Input Isolation: 800-2500 / >50 dB
  • Pass Bands, MHz / Input Isolation: 2500-2700 / >30 dB
  • Pass Band Loss: <0.5 dB
  • Power Rating Avg, peak: 120W., 3 kW



Technical details
Manufacturer's product name BK-24D 50W 80-520/694-2700MHz
Application Indoor Mobile Coverage, Mobile network
Availability Stock item
RF Connector 7/16 female
PIM (@2x43 dBm) -150
Frequency range (MHz) 80-520 / 694-2700
Power Port1/Port2 (W/Input) 50/120
Isolation (dB) >30
Return loss (dB) 18
Datasheet (327.32 kB)
