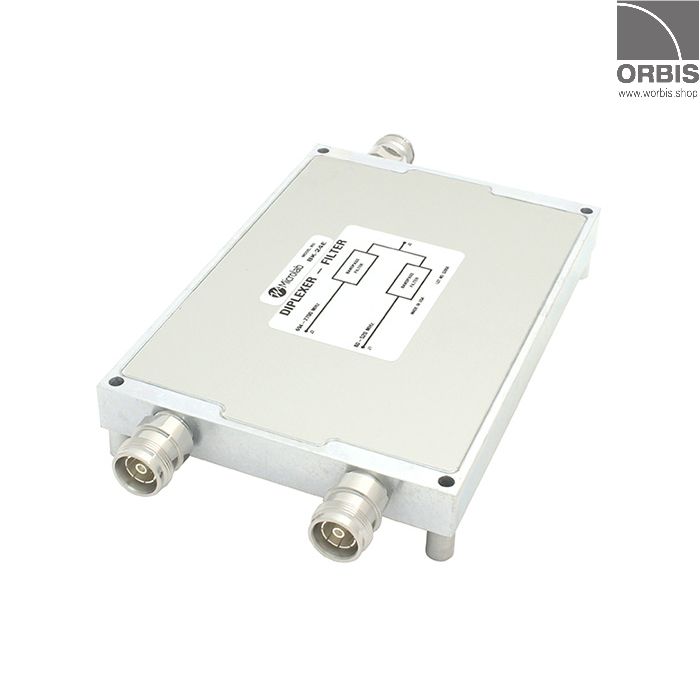

Diplexer 50W 80-520/694-2700 MHz 4.3-10F

Orbis PIM -161dBc @ 2x43 dBm, isolation 50dB, 50W, frequency range 80-520/694-2700MHz, connector 4.3-10F

SKU

3005393

€813.91

In stock 0, Delivery time 42 days from the order if the product is out of stock.

Technical details
Application	Indoor Mobile Coverage, Mobile network
Weight (kg)	0.800000
Frequency (MHz)	80-520 / 694-2700
Isolation (dB)	>30
PIM (@2x43 dBm)	-160
Power Port1/Port2 (W/Input)	50/120
Return loss (dB)	18
RF connector 1	4.3-10-naaras
TETRA	No
5G compatible	No

All prices VAT 0%.
