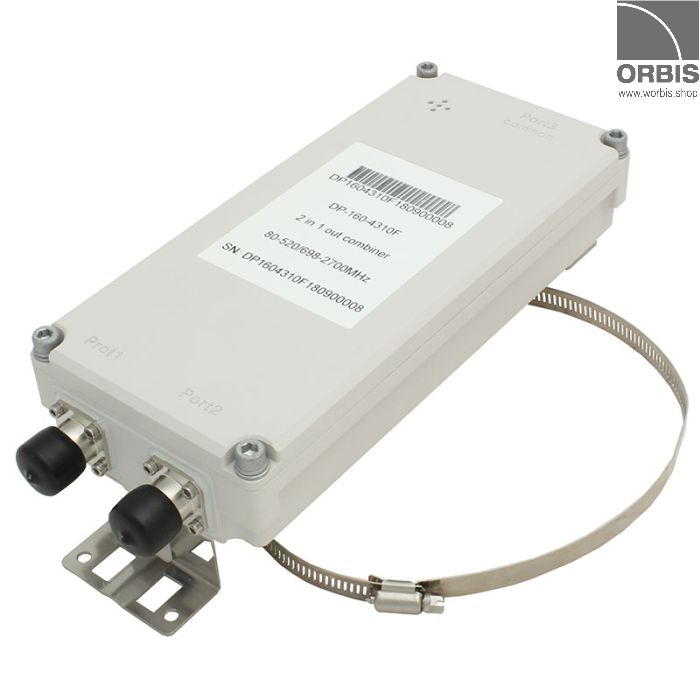

Diplexer 200W 80-520/698-2700 MHz 4.3-10F

Orbis PIM -160 dBc @ 2x43 dBm, isolation 35dB, 200W, frequencies 80-520/698-2700MHz, connector 4.3-10F

SKU

3005820

€581.33

In stock 0, Delivery time 30 days from the order if the product is out of stock.

Technical details
Application	Indoor Mobile Coverage, Mobile network
Weight (kg)	0.800000
Frequency (MHz)	80-520 / 698-2700
Insertion loss (dB)	1.0
Isolation (dB)	>35
PIM (@2x43 dBm)	-160
Power Port1/Port2 (W/Input)	200/200
Return loss (dB)	18
RF connector 1	4.3-10-naaras
TETRA	No
5G compatible	No

All prices VAT 0%.
