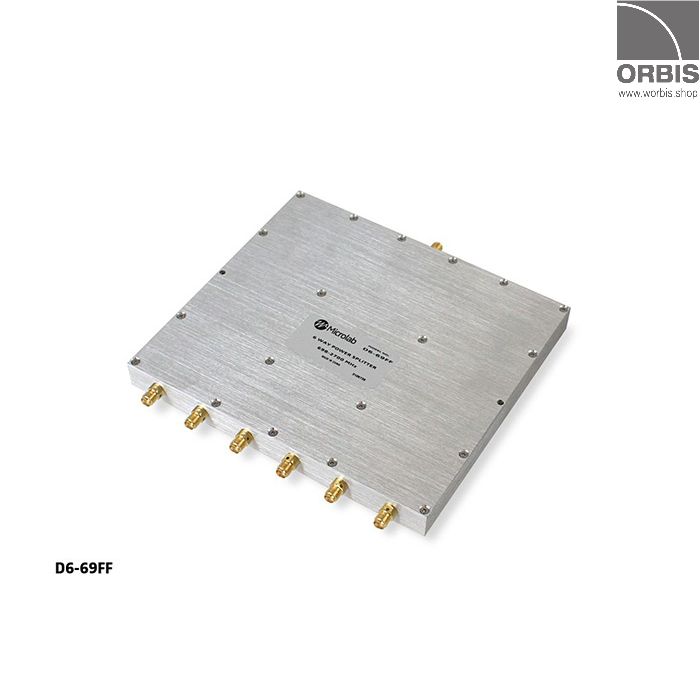

D6-69FF 6-way 5W 694-2700MHz SMA(F)

Symmetric power splitter 6way, connector SMA(F) gold plated, 5W,  frequency range 694-2700 MHz

Product code
3003064
€90.58 (€135.32)
Stock in Finland: 2

Symmetric power splitter 6way

  • Bandwidth: 694 - 2,700 MHz
  • Isolation: >20 dB
  • Impedance: 50 Om nominal
  • Environment: -30 to +60°C, Indoor
  • Housing: Passivated Aluminum
  • Connectors: SMA (f) gold plated
  • Split Loss: 7.8 dB
  • Insertion Loss, max.: 1.0 dB
  • Amplitude Balance: 0.8 dB
  • VSWR All Ports: <1.40:1
  • Power Rating: 5W awg.
Datasheet (397.04 kB)
