6820.17.A

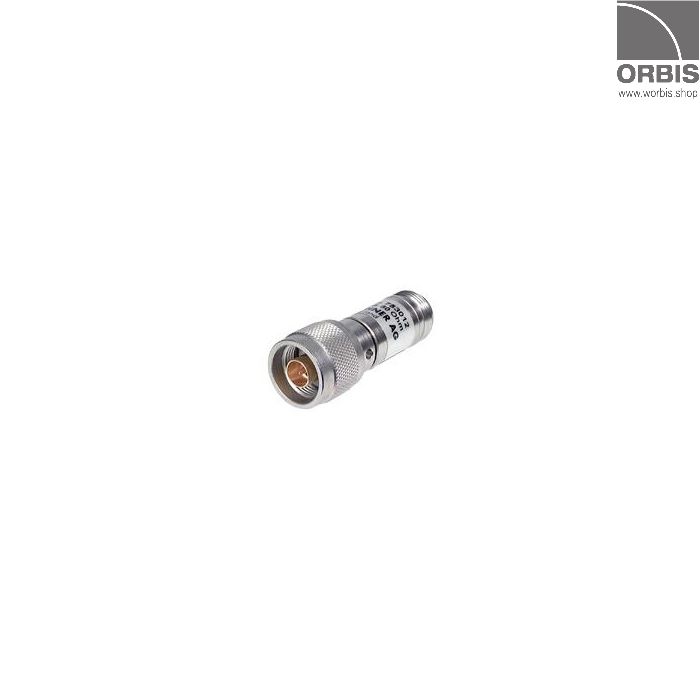

Coaxial standard attenuator, low power, N plug (male) to N jack (female) by Huber+Suhner.

Product code
22550186
€91.50
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial standard RF attenuator, low power by Huber+Suhner.

  • N plug (male) to N jack (female)
  • Weight: 0,069 kg

Electrical data

  • Nominal Impedance: 50 Ω
  • Nominal Attenuation: 20 dB
  • Frequency range: DC to 12.4 GHz
  • Frequency sub range (GHz): DC to 4
    • Attenuation deviation (±dB): 0.5
    • VSWR max.: 1.1
  • Frequency sub range (GHz): 4 to 8
    • Attenuation deviation (±dB): 0.6
    • VSWR max.: 1.2
  • Frequency sub range (GHz): 8 to 10
    • Attenuation deviation (±dB): 0.8
    • VSWR max.: 1.2
  • Frequency sub range (GHz): 10 to 12.4
    • Attenuation deviation (±dB): 0.8
    • VSWR max.: 1.25
  • Power rating: 1 Watt average power up to 30C ambient temperature, linearly derated to 0 Watt at 130 ̊C ambient temperature. 500 Watt peak power, 5 μs pulse, 0.05 % duty cycle

Environmental data

  • Operating temperature: -55C...+130C
  • 2011/65/EU (RoHS) compliant
