34_TNC-50-0-1/133_NE

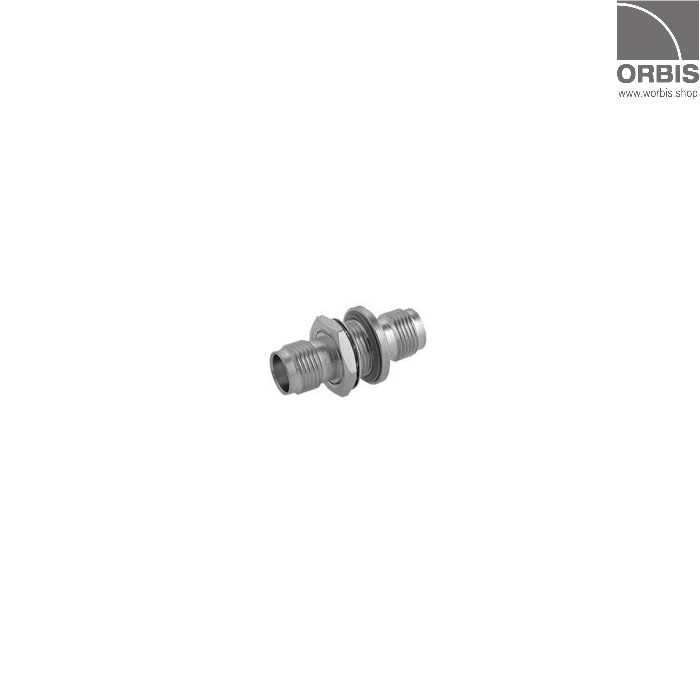

Coaxial Bulkhead RF adapter jack/jack by Huber+Suhner.

Product code
22640643
€21.95
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.

Mechanical data

Bulkhead adapter jack/jack.
TNC jack (female) / TNC jack (female)

  • Number of matings: 500
  • Weight: 0,0195 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 11 GHz
  • Frequency range: 0 to 2 GHz
    • Return Loss: 26dB
    • VSWR: 1.11
  • Frequency range: 2 to 8 GHz
    • Return Loss: 14dB
    • VSWR: 1.50
  • Frequency range: 8 to 11 GHz
    • Return Loss: 10dB
    • VSWR: 1.90

Environmental data

  • Operating temperature: -65C...+165C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
