34_SMA-50-0-3/111_NE

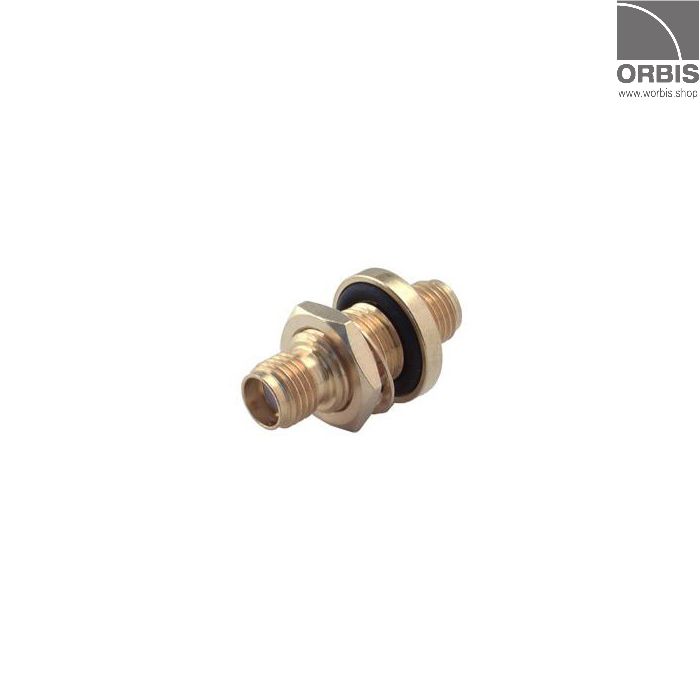

Coaxial Bulkhead RF adapter jack/jack by Huber+Suhner.

Product code
22641297
€47.90
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.

Mechanical data

Bulkhead adapter jack/jack.
Hermetic sealed connector.
Ingress protection according to IP68.
SMA jack (female) / SMA jack (female)

  • Chassis torque: 2 Nm
  • Number of matings: 500
  • Weight: 0,0068 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 18 GHz
  • Frequency Range: 0 to 3 GHz
    • Return Loss: 26dB
  • Frequency Range: 3 to 7 GHz
    • Return Loss: 20 dB
  • Frequency Range: 7 to 18 GHz
    • Return Loss: 17 dB

Environmental data

  • Operating temperature: -20C...+165C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
