34_QMA-SMA-50-1/133_NE

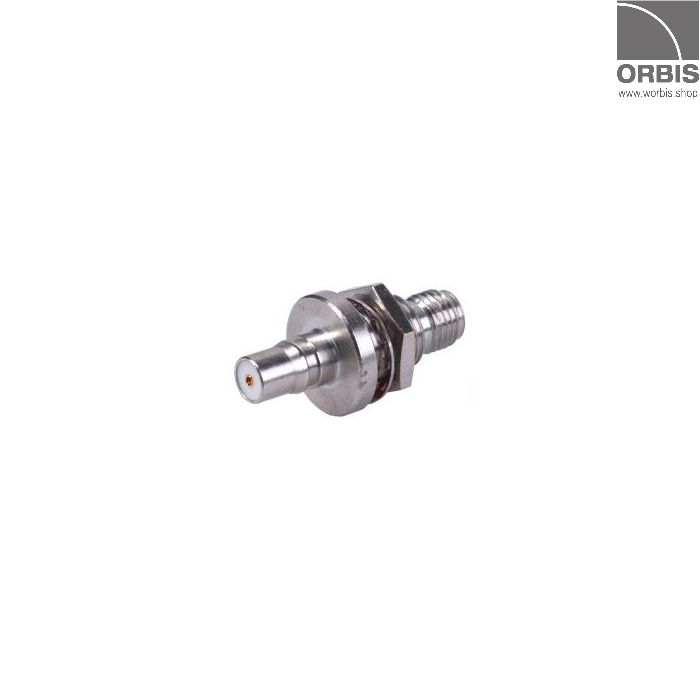

Coaxial Bulkhead RF adapter jack/jack by Huber+Suhner.

Product code
84017911
€42.75
Available in stock : 9

Mechanical data

Bulkhead adapter jack/jack. QuickLock interface.
QMA jack (female) / SMA jack (female)

  • Chassis torque: 4 Nm
  • Number of matings: 100
  • Weight: 0,0074 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 18 GHz
  • Frequency range: DC to 2.5 GHz
    • Return Loss: ≥ 33 dB
  • Frequency range: 2.5 to 6 GHz
    • Return Loss: ≥ 25 dB
  • Frequency range: 6 to 18 GHz
    • Return Loss: ≥ 18 dB

Environmental data

  • Operating temperature: -40C...+85C
  • 2011/65/EU (RoHS) compliant
