33_TNC-N-Q50-4/133_NE

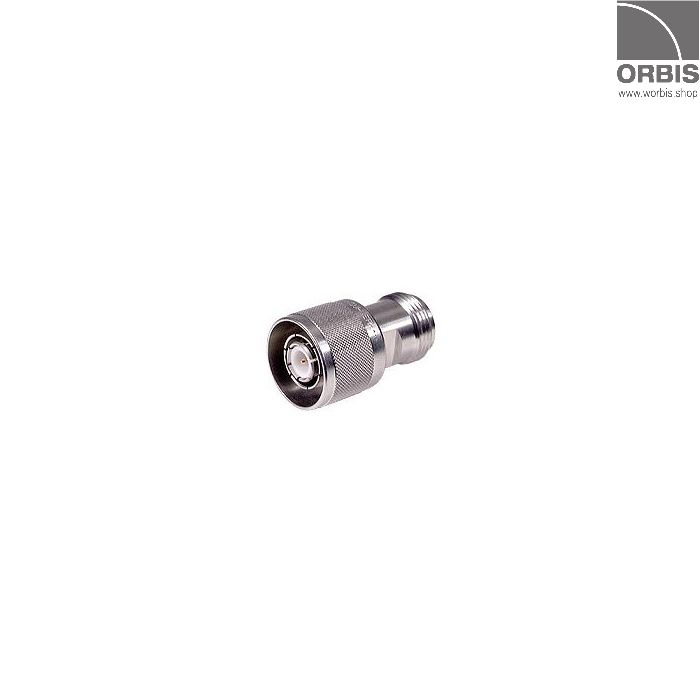

Coaxial RF adapter plug/jack by Huber+Suhner for test and measurement applications.

Product code
22660360
€51.32
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.
More Information
Color N/A

Mechanical data

Adapter plug/jack for test and measurement applications.
Quick-mate coupling mechanism, pluggable without tightening.
TNC Quick-mate plug (male) / N jack (female)

  • Number of matings: 500
  • Weight: 0,0361 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 11 GHz
  • Frequency Range: DC to 4 GHz
    • Return Loss: ≥ 30 dB
  • Frequency Range: 4 to 8 GHz
    • Return Loss: ≥ 24 dB
  • Frequency Range: 8 to 11 GHz
    • Return Loss: ≥ 18 dB

Environmental data

  • Operating temperature: -65C...+165C
  • 2011/65/EU (RoHS) compliant
