33_QMA-PC35-50-1/1--_NE

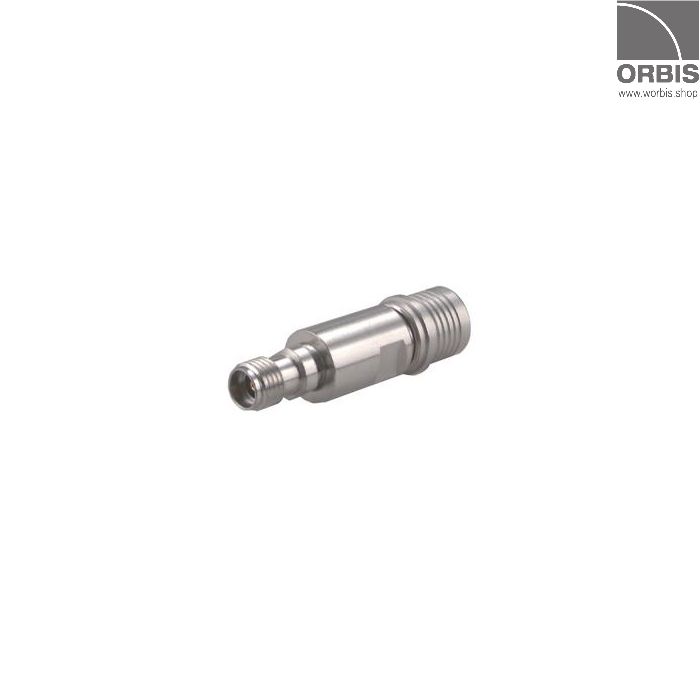

Coaxial RF adapter plug/jack by Huber+Suhner for test and measurement applications.

Product code
23017488
€95.70
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.
More Information
Color N/A

Mechanical data

Adapter plug/jack for test and measurement applications.
QuickLock Interface
QMA plug (male) / PC 3.5 jack (female)

  • Number of matings: 500
  • Weight: 0,0122 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 18 GHz
  • Frequency range: DC to 1.5 GHz
    • Return Loss: ≥ 35 dB
  • Frequency range: 1.5 to 6 GHz
    • Return Loss: ≥ 30 dB
  • Frequency range: 6 to 18 GHz
    • Return Loss: ≥ 20 dB
  • Electrical length: 25.5 mm

Environmental data

  • Operating temperature: -60C to +100C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
