33_PC35-50-0-2/199_NE

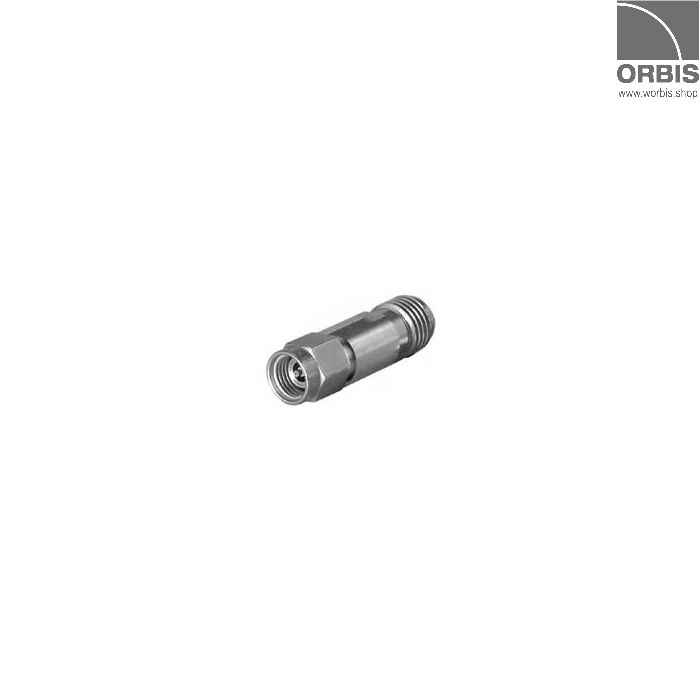

Coaxial precision RF adapter plug/jack by Huber+Suhner for test and measurement applications.

Product code
23020453
€119.30
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.

Mechanical data

Precision adapter plug/jack for test and measurement applications.
PC 3.5 plug (male) / PC 3.5 jack (female)

  • Number of matings: 500
  • Weight: 0,0064 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 33 GHz
  • Frequency range: DC to 1.5 GHz
    • Return Loss: ≥ 35 dB
  • Frequency range: 1.5 to 6 GHz
    • Return Loss: ≥ 30 dB
  • Frequency range: 6 to 18 GHz
    • Return Loss: ≥ 20 dB
  • Electrical length: 25.5 mm

Environmental data

  • Operating temperature: -60C to +100C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
