33_N-Q50-0-14/13-_NE

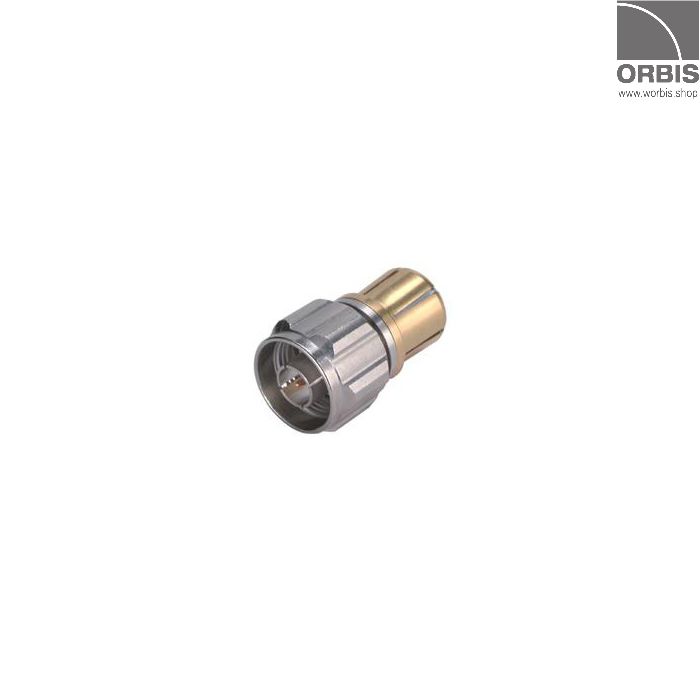

Coaxial RF precision adapter plug/jack by Huber+Suhner for test and measurement applications.

Product code
23003160
€50.25
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.
More Information
Color N/A

Mechanical data

Adapter for Test & Measurement applications
Quick-mate coupling mechanism, pluggable without tightening
N plug (male) / N Quick-mate jack (female)

  • Number of matings: 500
  • Weight: 0,0427 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 11 GHz
  • Frequency Range: DC to 4 GHz
    • Return Loss: ≥ 24 dB
  • Frequency Range: 4 to 8 GHz
    • Return Loss: ≥ 20 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
