32_716-50-0-5/133_WE

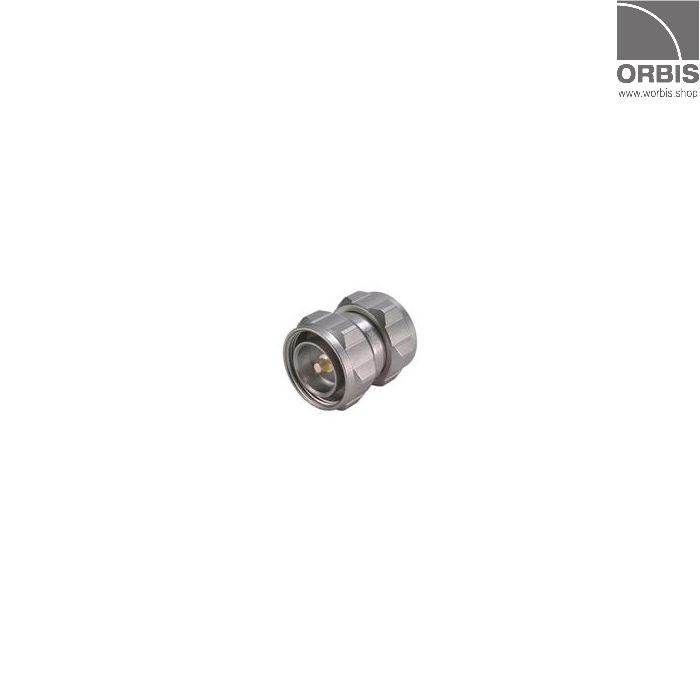

Coaxial RF PIM adapter plug/plug by Huber+Suhner.

Product code
85031354
€66.97
Available in stock 0, Delivery time 14 workdays from the order if the product is out of stock.


Mechanical data

Coaxial RF PIM adapter plug/plug. Low passive intermodulation (PIM) adapter.
7/16 plug (male) / 7/16 plug (male)

  • Number of matings: 500
  • Weight: 0,129 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 7.5 GHz
  • PIM, 3rd order intermodulation distortion (IMD) max.: Static -155 dBc at 2x 43 dBm / 20 W carrier

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial RF PIM adapter plug/plug. Low passive intermodulation (PIM) adapter.
7/16 plug (male) / 7/16 plug (male)

  • Number of matings: 500
  • Weight: 0,129 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 7.5 GHz
  • PIM, 3rd order intermodulation distortion (IMD) max.: Static -155 dBc at 2x 43 dBm / 20 W carrier

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant
All prices VAT 0%.
