32_716-50-0-1/003_-E

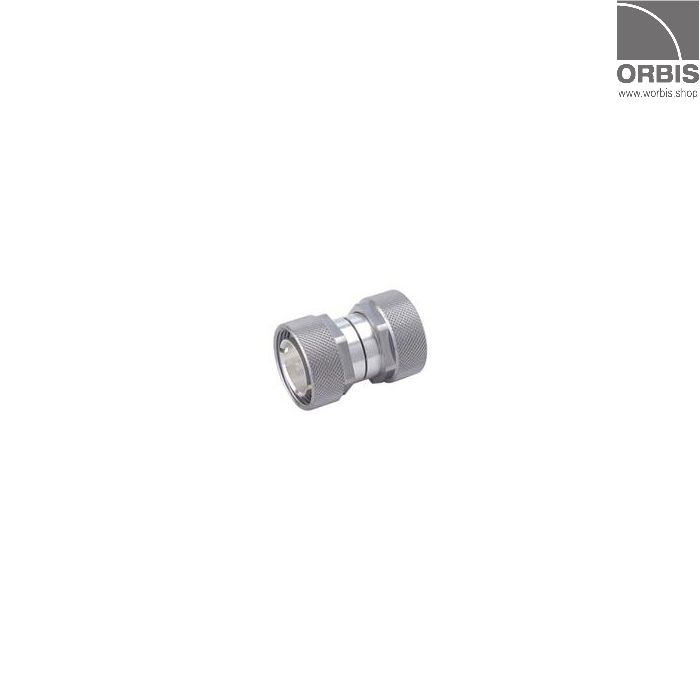

Coaxial precision RF adapter plug/plug by Huber+Suhner for test and measurement applications. Precision adaptor

Product code
22544118
€80.13
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.


Mechanical data

Coaxial precision RF adapter plug/plug for test and measurement applications.
7/16-precision plug (male) / 7/16-precision plug (male)

  • Number of matings: 500
  • Weight: 0,1281 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 7.5 GHz
  • Frequency range: DC to 2 GHz
    • Return loss: ≥ 40 dB
  • Frequency range: 2 to 4 GHz
    • Return loss: ≥ 36 dB
  • Frequency range: 4 to 6 GHz
    • Return loss: ≥ 34 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial precision RF adapter plug/plug for test and measurement applications.
7/16-precision plug (male) / 7/16-precision plug (male)

  • Number of matings: 500
  • Weight: 0,1281 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 7.5 GHz
  • Frequency range: DC to 2 GHz
    • Return loss: ≥ 40 dB
  • Frequency range: 2 to 4 GHz
    • Return loss: ≥ 36 dB
  • Frequency range: 4 to 6 GHz
    • Return loss: ≥ 34 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant
All prices VAT 0%.
