31_SK-50-0-1/199_NE

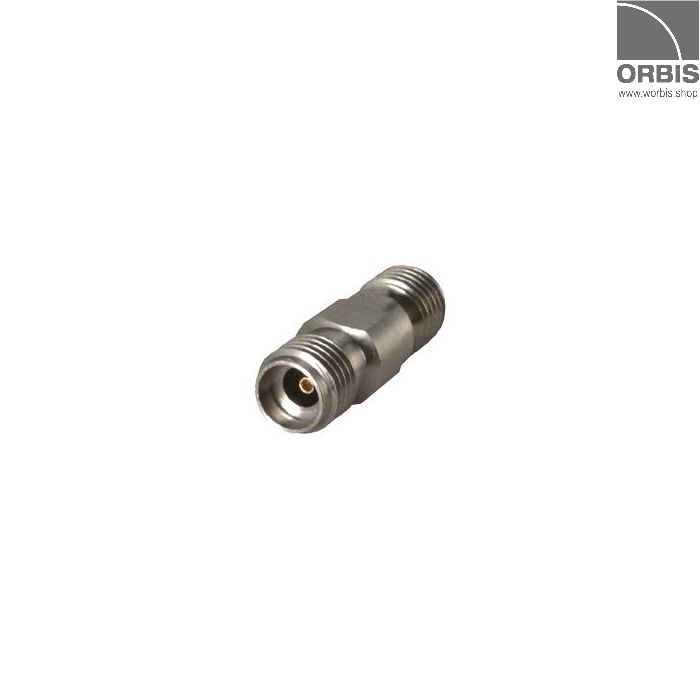

Coaxial precision RF adapter jack/jack by Huber+Suhner for test and measurement applications.

Product code
23004726
€247.50
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.


Mechanical data

Coaxial precision RF adapter jack/jack for test and measurement applications.
SK jack (female) / SK jack (female)

  • Number of matings: 500
  • Weight: 0,0033 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 40 GHz
  • Frequency range: DC to 40 GHz
  • Return loss: ≥ 20 dB
  • Electrical lenght: 16.1 mm

Environmental data

  • Operating temperature: -40C to +125C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial precision RF adapter jack/jack for test and measurement applications.
SK jack (female) / SK jack (female)

  • Number of matings: 500
  • Weight: 0,0033 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 40 GHz
  • Frequency range: DC to 40 GHz
  • Return loss: ≥ 20 dB
  • Electrical lenght: 16.1 mm

Environmental data

  • Operating temperature: -40C to +125C
  • 2011/65/EU (RoHS): compliant
