31_PC35-50-0-1/199_UE

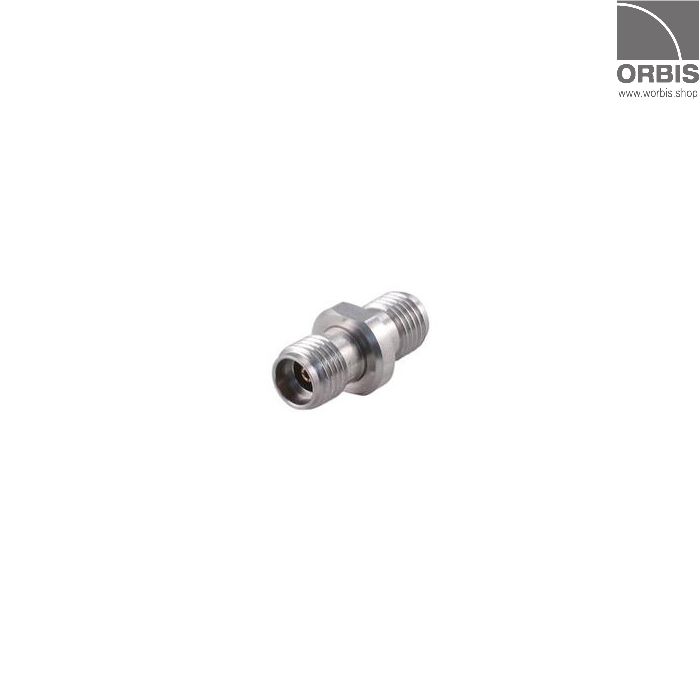

Coaxial precision RF adapter jack/jack by Huber+Suhner for test and measurement applications.

Product code
22644360
€105.75
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.


Mechanical data

Coaxial precision RF adapter jack/jack for test and measurement applications.
PC 3.5 jack (female) / PC 3.5 jack (female)

  • Number of matings: 500
  • Weight: 0,0034 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 33 GHz
  • Frequency range: DC to 18 GHz
    • Return loss: ≥ 28 dB
  • Frequency range: 18 to 26.5 GHz
    • Return loss: ≥ 23 dB
  • Electrical length: 14.1 mm

Environmental data

  • Operating temperature: -65C to +90C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial precision RF adapter jack/jack for test and measurement applications.
PC 3.5 jack (female) / PC 3.5 jack (female)

  • Number of matings: 500
  • Weight: 0,0034 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 33 GHz
  • Frequency range: DC to 18 GHz
    • Return loss: ≥ 28 dB
  • Frequency range: 18 to 26.5 GHz
    • Return loss: ≥ 23 dB
  • Electrical length: 14.1 mm

Environmental data

  • Operating temperature: -65C to +90C
  • 2011/65/EU (RoHS): compliant
