31_N-50-0-51/199_NE

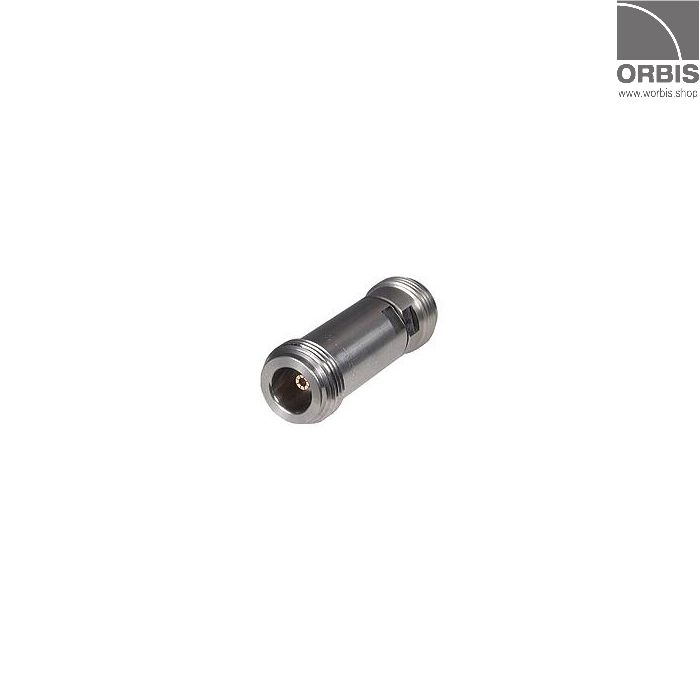

Coaxial precision RF adapter jack/jack by Huber+Suhner for test and measurement applications.

Product code
22652112
€67.17
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.


Mechanical data

Coaxial precision RF adapter jack/jack for test and measurement applications.
N-precision jack (female) / N-precision jack (female)

  • Number of matings: 500
  • Weight: 0,0387 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 18 GHz
  • VSWR: DC - 18 GHz ≤ 1.03 + 0.01 f (GHz)
  • Electrical length: 27.5 mm

Environmental data

  • Operating temperature: -55C to +70C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial precision RF adapter jack/jack for test and measurement applications.
N-precision jack (female) / N-precision jack (female)

  • Number of matings: 500
  • Weight: 0,0387 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 18 GHz
  • VSWR: DC - 18 GHz ≤ 1.03 + 0.01 f (GHz)
  • Electrical length: 27.5 mm

Environmental data

  • Operating temperature: -55C to +70C
  • 2011/65/EU (RoHS): compliant
