31_MMCX-50-0-1/111_OE

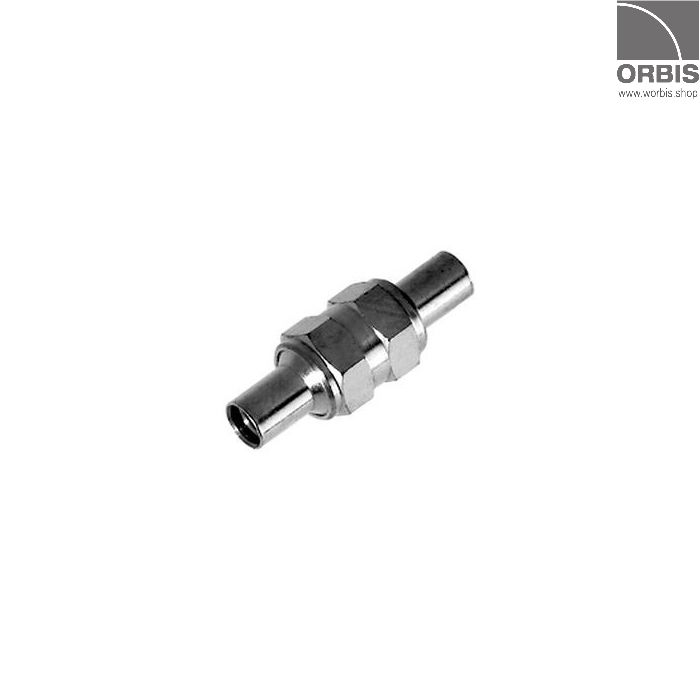

Coaxial RF adapter jack/jack by Huber+Suhner.

Product code
22645960
€28.43
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.


Mechanical data

Coaxial RF adapter jack/jack
MMCX jack (female) / MMCX jack (female)

  • Number of matings: 500
  • Weight: 0,0021 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 6 GHz
  • Frequency range: DC to 3 GHz
    • Return loss: ≥ 26 dB
  • Frequency range: 3 to 6 GHz
    • Return loss: ≥ 18 dB

Environmental data

  • Operating temperature: -55C to +155C
  • 2011/65/EU (RoHS): compliant
More Information
Color N/A


Mechanical data

Coaxial RF adapter jack/jack
MMCX jack (female) / MMCX jack (female)

  • Number of matings: 500
  • Weight: 0,0021 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 6 GHz
  • Frequency range: DC to 3 GHz
    • Return loss: ≥ 26 dB
  • Frequency range: 3 to 6 GHz
    • Return loss: ≥ 18 dB

Environmental data

  • Operating temperature: -55C to +155C
  • 2011/65/EU (RoHS): compliant
