31_MCX-SMA-50-1/111_NE

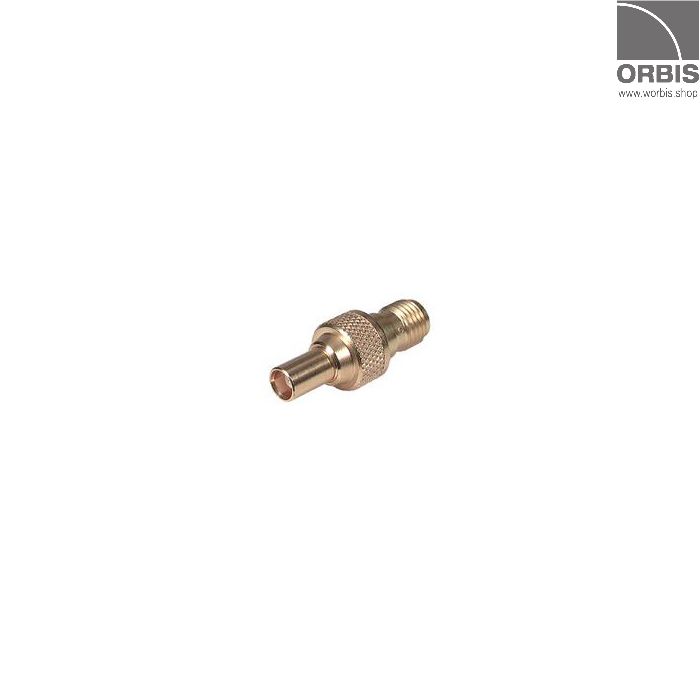

Coaxial RF adapter jack/jack by Huber+Suhner.

Product code
22645485
€52.20
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.


Mechanical data

Coaxial RF adapter jack/jack
MCX jack (female) / SMA jack (female)

  • Number of matings: 500
  • Weight: 0,0049 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 6 GHz
  • VSWR: DC - 6 GHz ≤ 1.03 + 0.03 f (GHz)

Environmental data

  • Operating temperature: -55C to +155C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial RF adapter jack/jack
MCX jack (female) / SMA jack (female)

  • Number of matings: 500
  • Weight: 0,0049 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 6 GHz
  • VSWR: DC - 6 GHz ≤ 1.03 + 0.03 f (GHz)

Environmental data

  • Operating temperature: -55C to +155C
  • 2011/65/EU (RoHS): compliant
All prices VAT 0%.
