31_BNC-TNC-50-1/133_UE

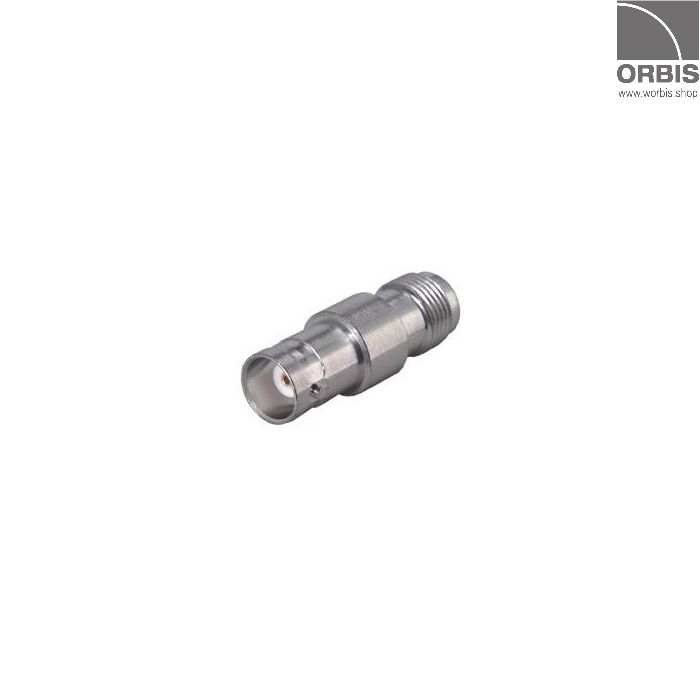

Coaxial RF adapter jack/jack by Huber+Suhner.

Product code
22540559
€22.65
Available in stock 0, Delivery time 28 workdays from the order if the product is out of stock.


Mechanical data

Coaxial RF adapter jack/jack
BNC jack (female) / TNC jack (female)

  • Number of matings: 500
  • Weight: 0,0131 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 4 GHz
  • Frequency range: DC to 4 GHz
  • Return Loss: ≥ 20 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant


Mechanical data

Coaxial RF adapter jack/jack
BNC jack (female) / TNC jack (female)

  • Number of matings: 500
  • Weight: 0,0131 kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max: 4 GHz
  • Frequency range: DC to 4 GHz
  • Return Loss: ≥ 20 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS): compliant
All prices VAT 0%.
