31_716-50-0-1/003_-E

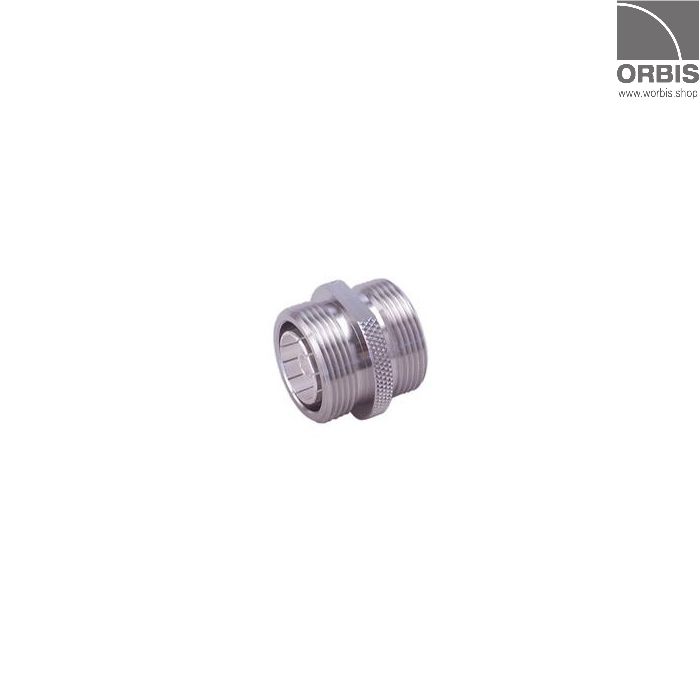

Coaxial RF adapter jack/jack by Huber+Suhner.

Product code
22544117
€80.13
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial RF adapter jack/jack
7/16 jack (female) / 7/16 jack (female)

  • Number of matings: 500
  • Weight: 0,0871kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max:  7.5 GHz
  • VSWR: DC - 7.5 GHz ≤ 1.03 + 0.01 f (GHz)
  • Frequency Range: DC to 3 GHz
  • Return Loss Range: ≥36 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS)compliant

For more information, please Contact our customer service

More Information
Color N/A


Mechanical data

Coaxial RF adapter jack/jack
7/16 jack (female) / 7/16 jack (female)

  • Number of matings: 500
  • Weight: 0,0871kg

Electrical data

  • Impedance: 50 Ω
  • Interface Freq max:  7.5 GHz
  • VSWR: DC - 7.5 GHz ≤ 1.03 + 0.01 f (GHz)
  • Frequency Range: DC to 3 GHz
  • Return Loss Range: ≥36 dB

Environmental data

  • Operating temperature: -65C to +165C
  • 2011/65/EU (RoHS)compliant
