24_N-50-3-51/19-_NE

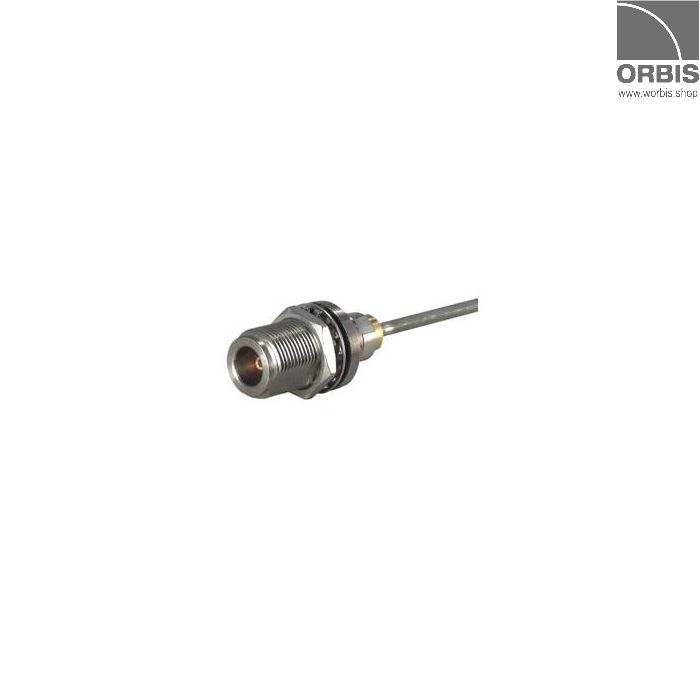

Coaxial RF Cable Connector, Straight bulkhead cable feed through N by Huber+Suhner. Rear mount chassis connector. Precision connector.

Product code
22642344
€37.58
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial straight bulkhead cable feed through N by Huber+Suhner. Rear mount chassis connector. Precision connector.

  • Weight: 0.0484 kg
  • Centre contact: plugged
  • Outer contact: soldered

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.:18 GHz
  • Frequency range: DC to 12 GHz
    • Return loss: 30 dB

Environmental data

  • Operating temperature: -55C...+70C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
