24_N-50-3-14/133_NE

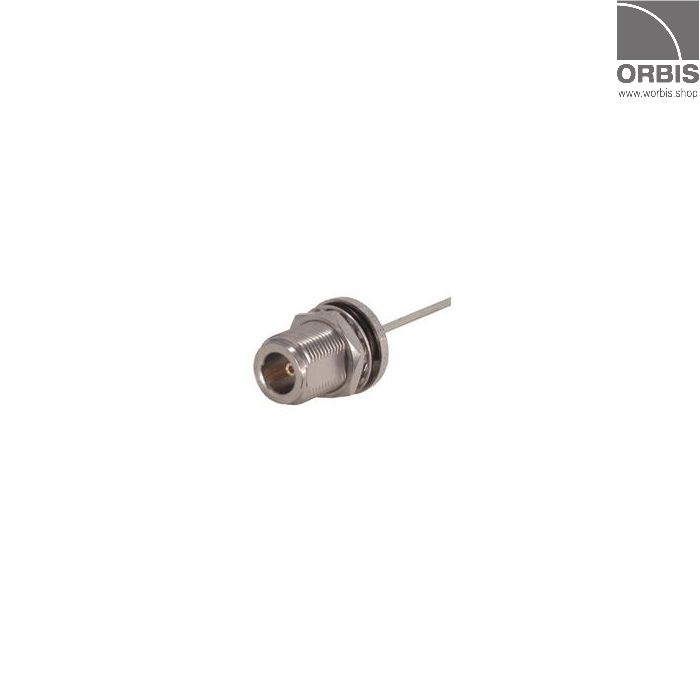

Coaxial RF Cable Connector, Straight bulkhead cable feed through N by Huber+Suhner. Rear mount chassis connector. With panel seal.

Product code
22542300
€9.90
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial straight bulkhead cable feed through N by Huber+Suhner. Rear mount chassis connector. With panel seal.

  • Weight: 0.0399 kg
  • Centre contact: soldered
  • Outer contact: soldered

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.:18 GHz
  • Frequency range: DC to 6 GHz
    • Return loss: 30 dB

Environmental data

  • Operating temperature: -65C...+165C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
