24_BNC-50-2-45/133_NE

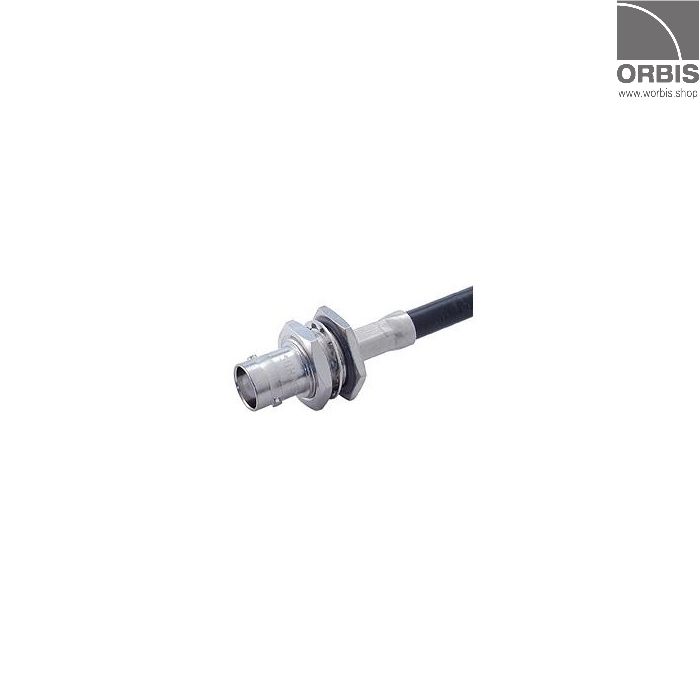

Coaxial RF Cable Connector, Straight bulkhead cable feed through BNC by Huber+Suhner.

Product code
84057863
€12.30
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial straight bulkhead cable feed through BNC by Huber+Suhner. El. Optimized for cable RG 316/U. Excellent return loss performance.

  • Weight: 0.018 kg
  • Centre contact: crimped
  • Outer contact: crimped

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 4 GHz
  • Frequency range: DC to 2.5 GHz
    • Return loss: 28 dB

Environmental data

  • Operating temperature: -65C...+165C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
