21_716-50-23-44/033_-E

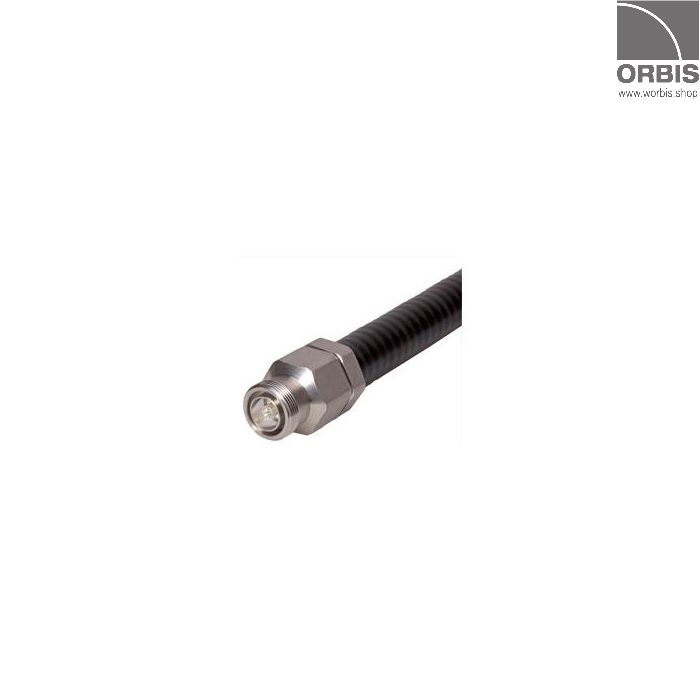

Coaxial cable RF connector by Huber+Suhner. Straight cable jack 7/16.

Product code
84069194
€22.15
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.
Loading...
More Information
Color N/A

Mechanical data

Coaxial straight RF cable jack 7/16 by Huber+Suhner.

  • 7/16 jack
  • Smart Quick-Fit connector for outdoor applications
  • Water protection according to IP68
  • Weight: 0,193 kg
  • Centre contact: plugged
  • Outer contact: clamped

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 7.5 GHz
  • Frequency range: DC to 2.5 GHz
    • Return Loss: ≥ 30 dB
  • Frequency range: 2.5 to 3 GHz
    • Return Loss: ≥ 28 dB
  • Intermodulation: ≤ Static -155 dBc (2 x 43 dBm carrier)

Environmental data

  • Operating temperature: -40C...+85C
  • 2011/65/EU (RoHS) compliant
