16_SMA-50-3-3/111_NE

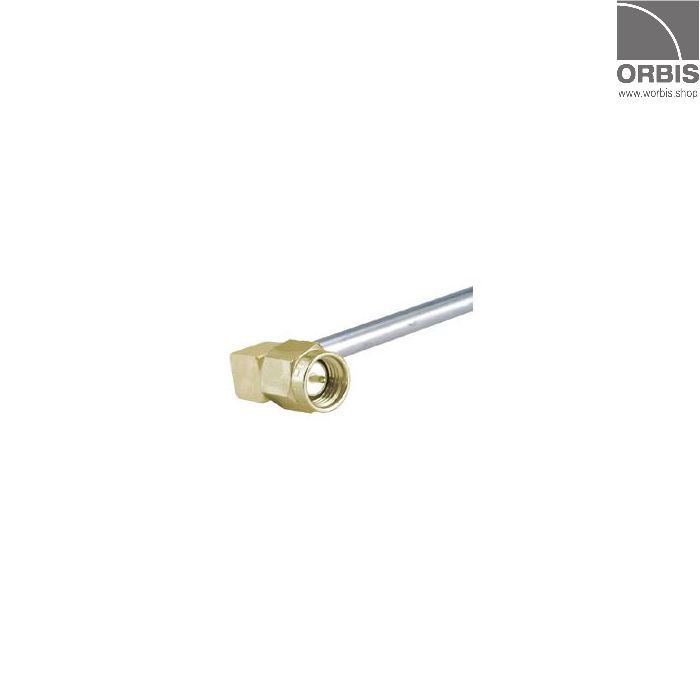

Coaxial RF Cable Connector, Right angle cable plug SMA by Huber+Suhner.

Product code
22640073
€7.03
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial right angle cable plug SMA by Huber+Suhner.

  • SMA plug
  • Weight: 0.0045 kg
  • Centre contact: soldered
  • Outer contact: soldered

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 18 GHz
  • Frequency range: DC to 2 Ghz
    • Return loss: 32 dB
  • Frequency range: 2 to 12 GHz
    • Return loss: 23 dB
  • Frequency range: 12 to 18 GHz
    • Return loss: 10 dB

Environmental data

  • Operating temperature: -65C...+165C
  • 2011/65/EU (RoHS) compliant
