11_SMA-50-4-101/199_NE

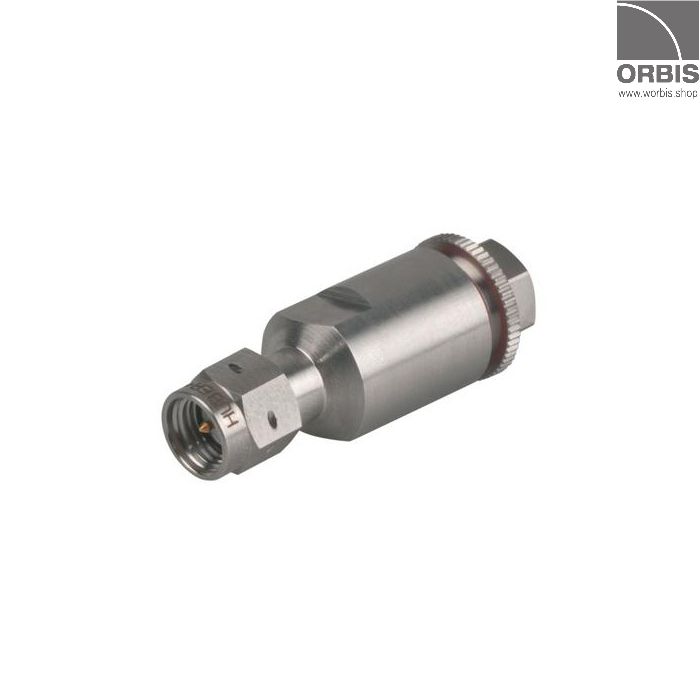

Coaxial RF Cable Connector, Straight cable plug SMA by Huber+Suhner.

Product code
84070289
€54.73
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial straight RF cable plug SMA by Huber+Suhner.

  • SMA plug
  • Weight: 0,0126 kg
  • Centre contact: plugged
  • Outer contact: clamped

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 18 GHz
  • Frequency range: DC to 6 GHz
    • Return loss: 25 dB
  • Frequency range: 6 to 18 GHz
    • Return loss: 23 dB

Environmental data

  • Operating temperature: -65C...+165C
  • 2011/65/EU (RoHS) compliant
