11_QN-50-3-4/133_NE

RF connector for flexible cable. Manufactured by Huber+Suhner.

Product code
84016563
€12.90
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

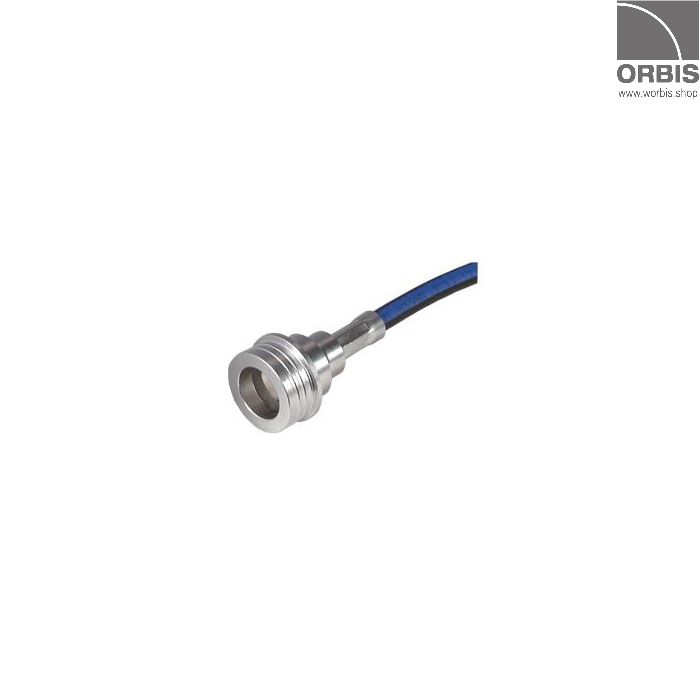

Coaxial straight RF cable plug QN by Huber+Suhner. Quick lock interface.

  • QN plug
  • QN QLF compliant
  • Weight: 0,016 kg
  • Centre contact: crimped
  • Outer contact: crimped

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 11 GHz
  • Frequency range: DC to 3 GHz
    • Return Loss: 32 dB
  • Frequency range: 3 to 4 GHz
    • Return Loss: 28 dB
  • Frequency range: 4 to 6 GHz
    • Return Loss: 20 dB

Environmental data

  • Operating temperature: -40C...+125C
  • 2011/65/EU (RoHS) compliant
