11_N-50-9-9/033_-E

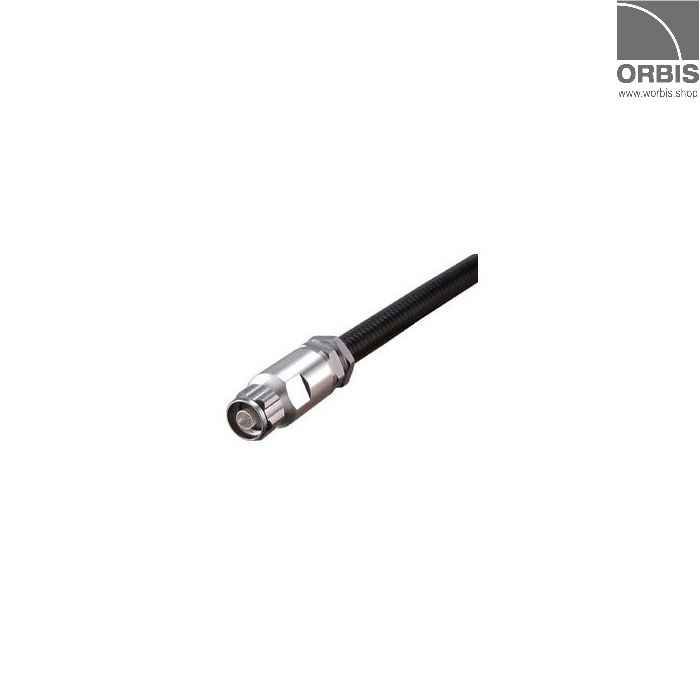

Coaxial cable RF connector by Huber+Suhner. Straight cable plug N

Product code
22660311
€11.75
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

Coaxial straight RF cable plug N by Huber+Suhner.

  • N plug
  • Quick-Fit connector for outdoor applications
  • Water protection according to IP68
  • Weight: 0,1117 kg
  • Centre contact: plugged
  • Outer contact: clamped

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 11 GHz
  • Frequency range: DC to 3 GHz
  • Return Loss: ≥ 30 dB
  • Intermodulation: ≤ Static -155 dBc (2 x 43 dBm carrier)

Environmental data

  • Operating temperature: -40C...+85C
  • 2011/65/EU (RoHS) compliant
All prices VAT 0%.
