11_N-50-4-19/12-_NE

RF connector for coaxial cable. Manufactured by Huber+Suhner.

Product code
84070286
€59.67
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

Mechanical data

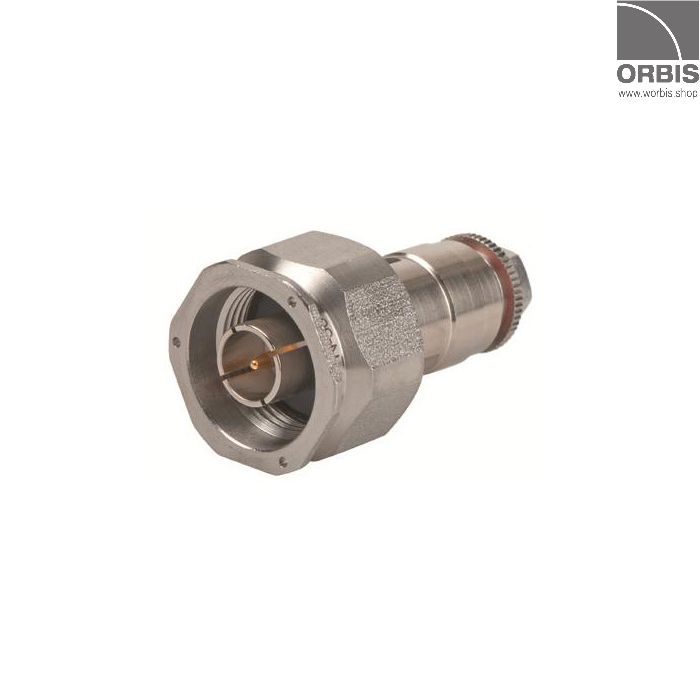

Coaxial straight RF cable plug N by Huber+Suhner.

  • N plug
  • Weight: 0,035 kg
  • Centre contact: plugged
  • Outer contact: clamped

Electrical data

  • Impedance: 50 Ω
  • Interface frequency max.: 18 GHz
  • Frequency range: DC to 6 GHz
    • Return Loss: 25 dB
  • Frequency range: 6 to 11 GHz
    • Return Loss: 17 dB
  • Frequency range: 11 to 18 GHz
    • Return Loss: 16 dB

Environmental data

  • Operating temperature: -60C...+165C
  • 2011/65/EU (RoHS) compliant
