11_BNC-50-3-86/133_NE

RF connector for flexible cable. Manufactured by Huber+Suhner.

Product code
84057576
€6.47
Available in stock 0, Delivery time 42 workdays from the order if the product is out of stock.

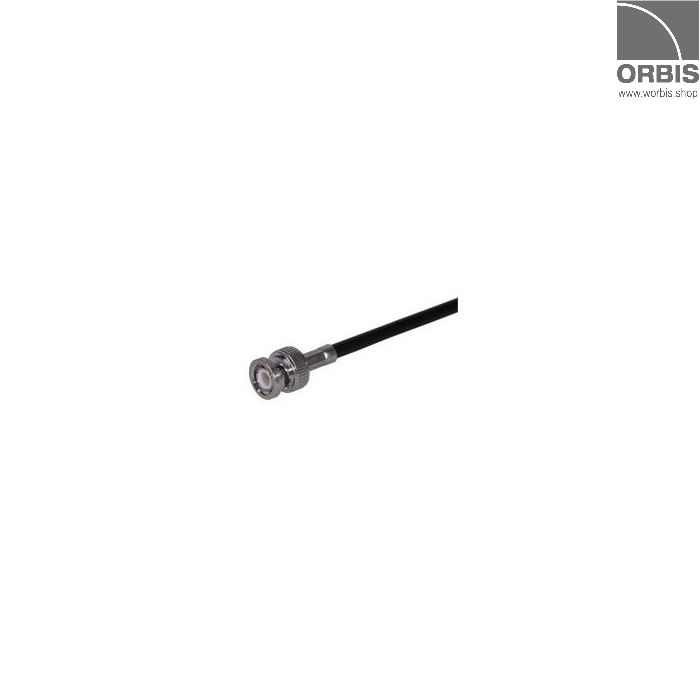

Coaxial cable connector by Huber+Suhner. Straight cable plug BNC. El. Optimized for cable RG 223/U. Excellent return loss performance.

Electrical data

  • Impendance: 50 Ω
  • Intefrace frequency max.: 4 GHz
  • Frequency range: DC to 2.5 GHz
    • Return loss: 29 dB
  • Frequency range: 2.5 to 4 GHz
    • Return loss: 22 dB

Mechanical Data

  • Centre contact: crimped
  • Outer contact: crimped
  • Weight: 0,01 kg

Environmental Data:

  • Operating temperature: -65C to +165C
  • 2011/65/EU, RoHS: compliant
